TRUNK LID LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

id091400817100

1.  Disconnect the negative battery cable.

2.  Remove the recess. (See RECESS REMOVAL/INSTALLATION.)

3.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

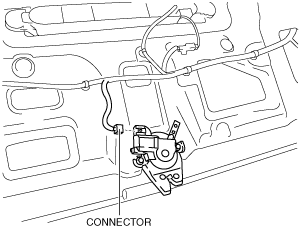

4.  Disconnect the connector.

am6zzw00001670

5.  Remove the bolts.

am6zzw00001671

6.  Remove the trunk lid latch and lock actuator.

7.   Install in the reverse order of removal.
