RADIATOR GRILLE REMOVAL/INSTALLATION

id091600800900

Standard Type

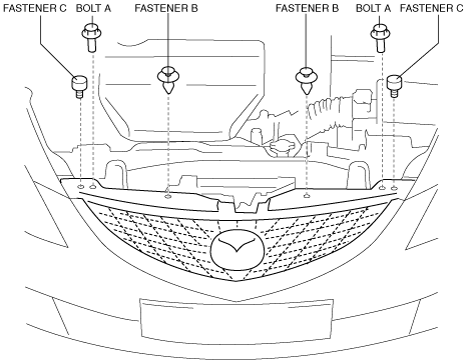

1.  Remove the bolts A and fasteners B and C.

am6zzw00006634

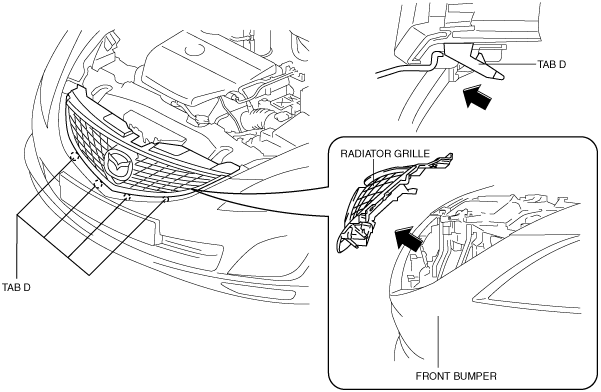

2.  Align the radiator grille with the tab D insertion angles, pull in the direction of the arrow, and disconnect tabs D.

am6zzw00006365

Caution

•  When removing the radiator grille, be careful not to damage the tabs D.

3.  Install in the reverse order of removal.

Sport Type

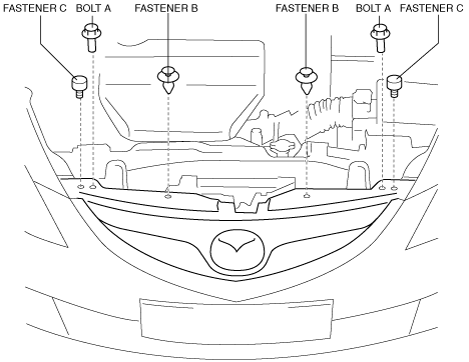

1.  Remove the bolts A and fasteners B and C.

am6zzw00000904

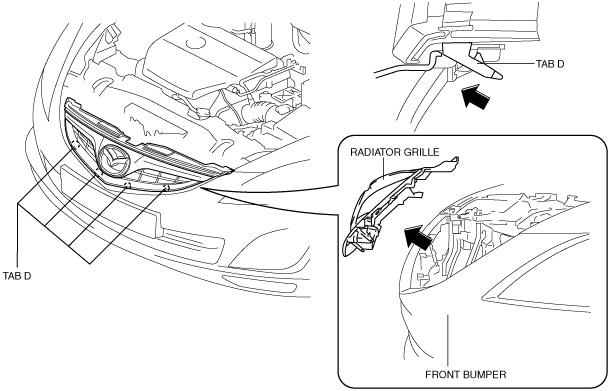

2.  Align the radiator grille with the tab D insertion angles, pull in the direction of the arrow, and disconnect tabs D.

am6zzw00006366

Caution

•  When removing the radiator grille, be careful not to damage the tabs D.

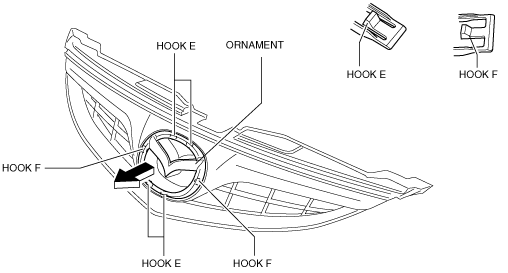

3.  Detach the hooks E and F then remove the ornament in the direction of the arrow shown in the figure.

am6zzw00006472

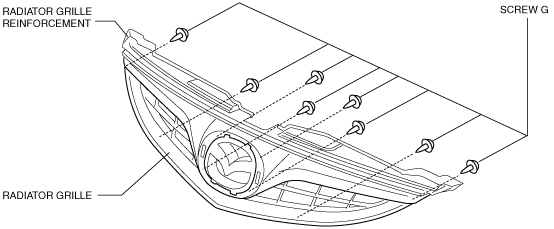

4.  Remove the screws G.

am6zzw00006473

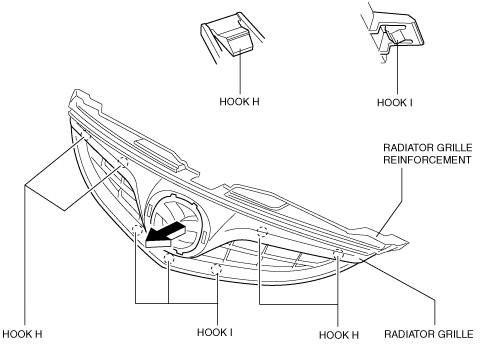

5.  Detach the hooks H and I then remove the radiator grille in the direction of the arrow shown in the figure.

am6zzw00006474

6.  Install in the reverse order of removal.
