COWL GRILLE REMOVAL/INSTALLATION

id091600801000

1.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION)

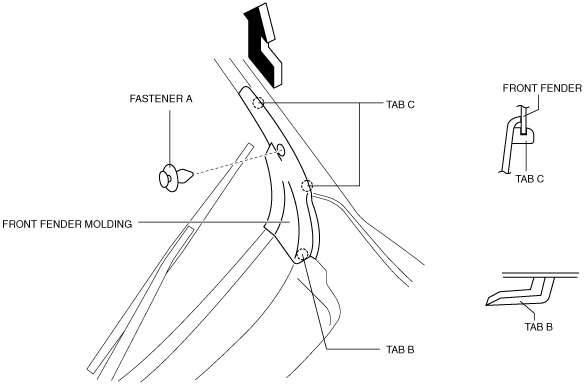

2.  Remove the fastener A.

am6zzw00003683

3.  Pull the front fender molding in the direction of the arrow shown in the figure and remove it while remove the tabs B and tab C.

4.  Disconnect the windshield washer hose from the joint pipe A. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION)

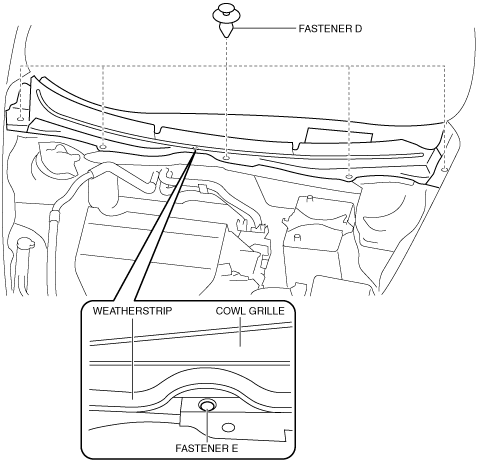

5.  Remove the fasteners D and E.

am6zzw00003687

Note

•  Set aside the weatherstrip shown in the figure, and remove the fastener E.

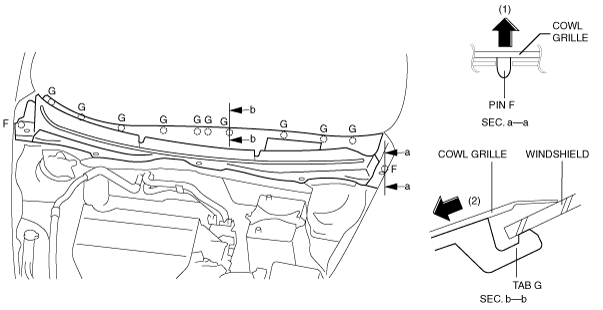

6.  Pull the cowl grille in the direction of arrow (1) so that it is free from the pins F, pull tabs G in the direction of arrow (2), and then remove the windshield.

am6zzw00004556

7.  Remove the cowl grille.

8.  Install in the reverse order of removal.
