SIDE STEP MOLDING INSTALLATION

id091600804300

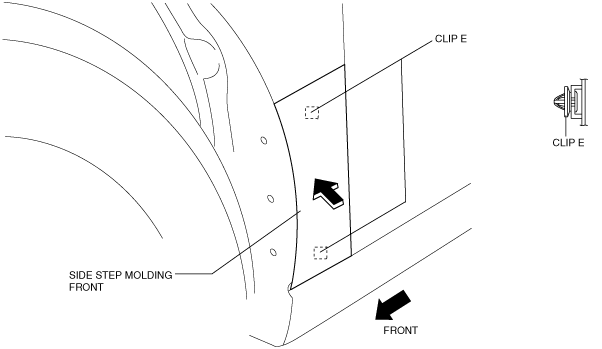

1.  Install the side step molding front while pushing the clips E installation area shown in the figure.

am6zzw00004558

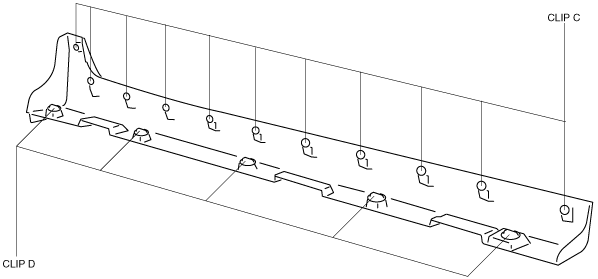

2.  Install new clips C and D to the side step molding.

am6zzw00000765

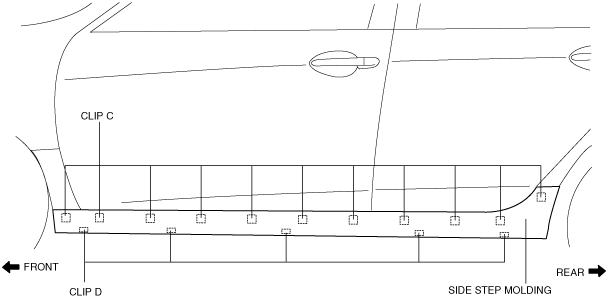

3.  Install the side step molding while pushing the clips C, D installation area shown in the figure.

am6zzw00001271

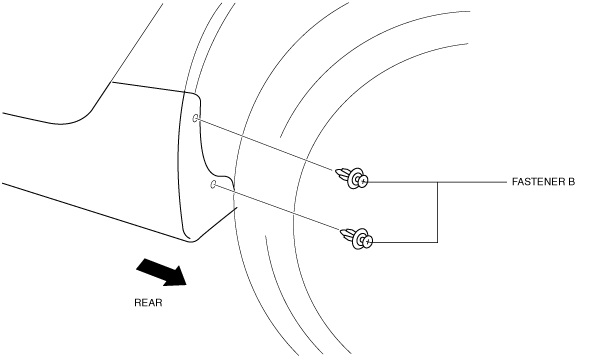

4.  Install the fasteners B.

am6zzw00000630

5.  Install the fasteners A.

am6zzw00000629
