REAR BELTLINE MOLDING REMOVAL/INSTALLATION

id091600804700

1.  Fully lower the rear door glass.

2.  Remove the rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

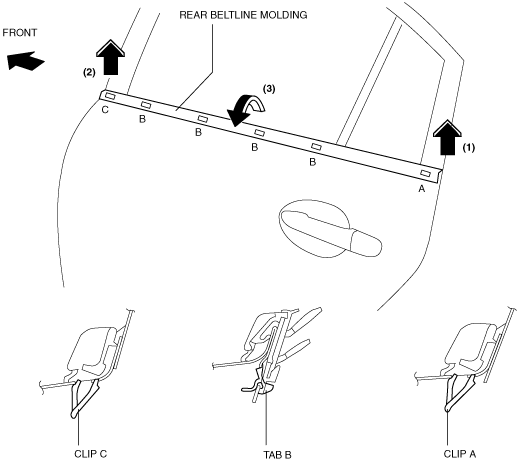

3.  Remove clip A using a removal tool and pull up the rear beltline molding in the direction of the arrow (1) shown in the figure.

am6zzw00004560

4.  Remove clip C using a removal tool and pull up the rear beltline molding in the direction of the arrow (2) shown in the figure.

5.  Rotate the rear beltline molding in the direction of the arrow (3) shown in the figure and remove it while detaching tabs B.

6.  Install in the reverse order of removal.
