FRONT MUDGUARD REMOVAL/INSTALLATION

id091600812300

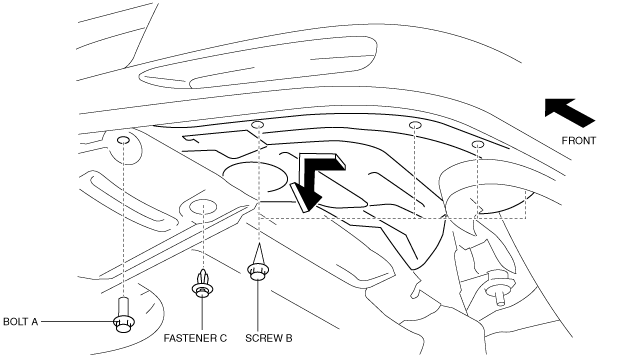

1.  Remove bolt A, screws B and fastener C, and set the front mudguard out of the way in the direction of the arrow shown in the figure.

am6zzw00007243

2.  Remove fasteners D.

am6zzw00001586

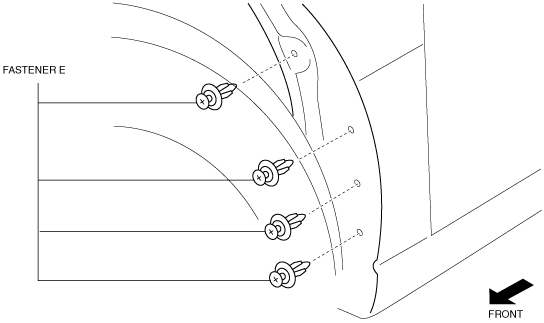

3.  Remove fasteners E.

am6zzw00001587

4.  Remove fastener F and G.

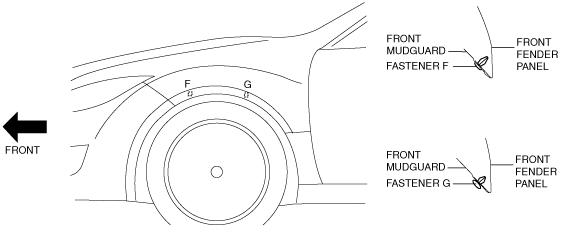

am6zzw00004562

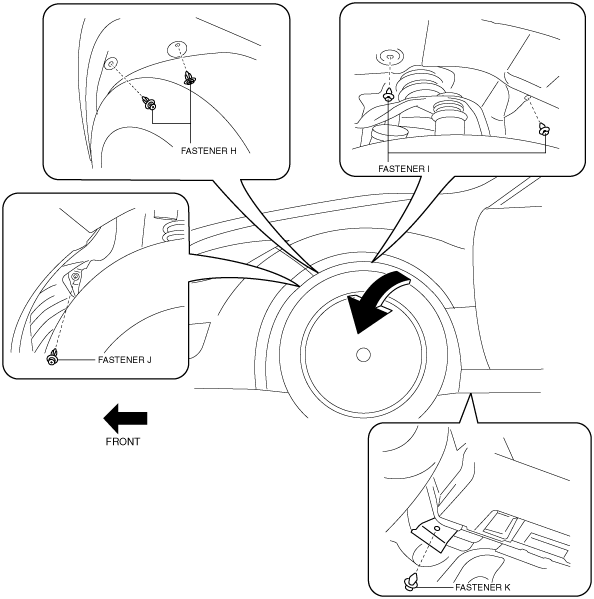

5.  Remove fasteners H, I, J and K, then remove the mudguard in the direction of the arrow shown in the figure.

am6zzw00002593

6.  Install in the reverse order of removal.
