REAR MUDGUARD REMOVAL/INSTALLATION

id091600812400

1.  Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION )

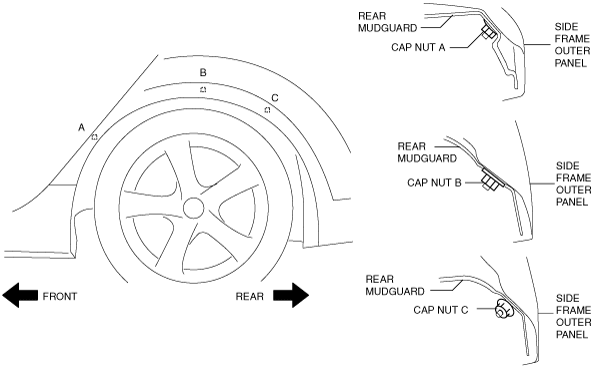

2.  Remove the cap nut A, B and C.

am6zzw00004563

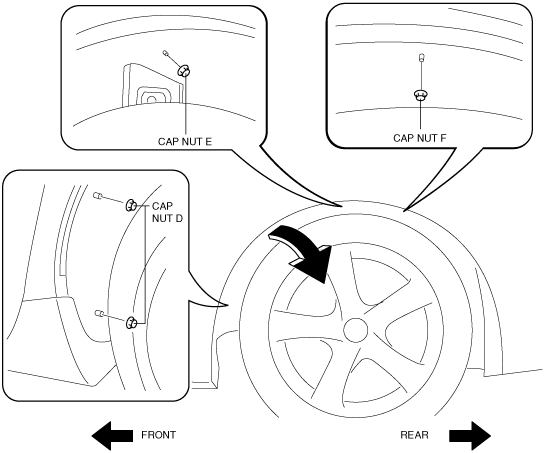

3.  Remove the cap nuts D, E and F, then remove the rear mudguard in the direction of the arrow shown in the figure.

am6zzw00000706

4.  Install in the reverse of removal.
