FLOOR UNDER COVER REMOVAL/INSTALLATION

id091600820200

1.  Lift up the vehicle.

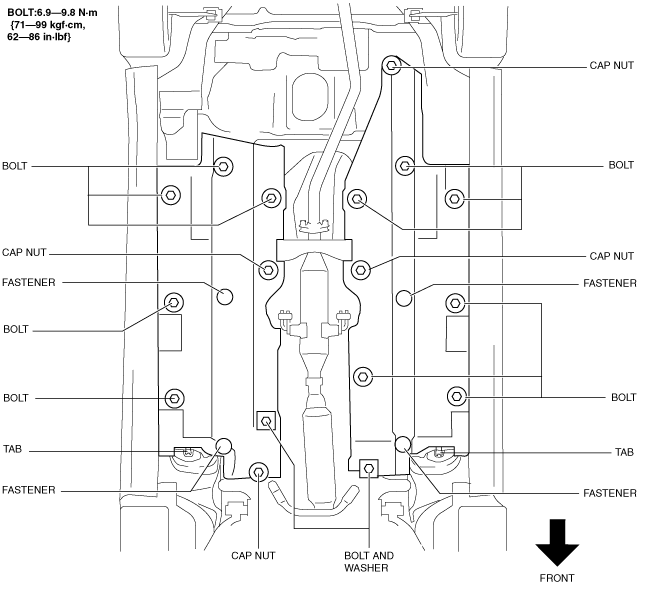

2.  Remove the bolts, cap nuts and fasteners.

am6zzw00000675

3.  Remove the floor under cover and remove it while detaching the tabs.

Caution

•  Be careful not to damage the floor under cover during removal.

4.  Install in the reverse order of removal.
