DASHBOARD DISASSEMBLY/ASSEMBLY
id091700800400
1. Remove the ventilator grilles (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

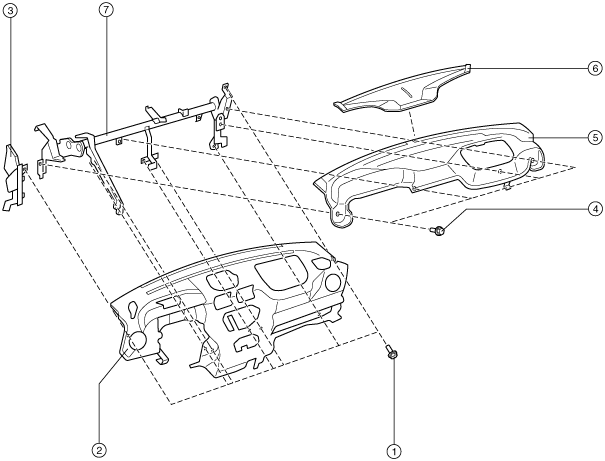

L.H.D.
am6zzw00001819
|
|
1
|
Screw A
|
|
2
|
Dashboard
|
|
3
|
Dashboard member
|
|
4
|
Screw B
|
|
5
|
Center duct
|
|
6
|
Defroster duct
|
|
7
|
Dashboard frame
|

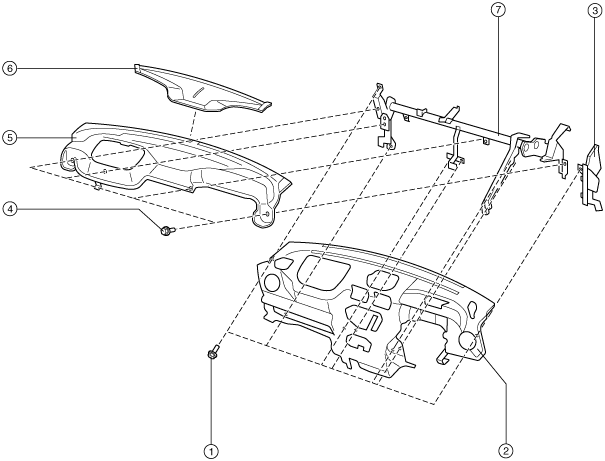

R.H.D.
am6zzw00001820
|
|
1
|
Screw A
|
|
2
|
Dashboard
|
|
3
|
Dashboard member
|
|
4
|
Screw B
|
|
5
|
Center duct
|
|
6
|
Defroster duct
|
|
7
|
Dashboard frame
|
