COLUMN COVER REMOVAL/INSTALLATION

id091700800800

1.  Pull down the steering wheel.

2.  Pull the upper column cover in the direction of the arrow in the order of (1) and (2), then remove the upper column cover while detaching the tabs and pins.

L.H.D.

adejjw00003370

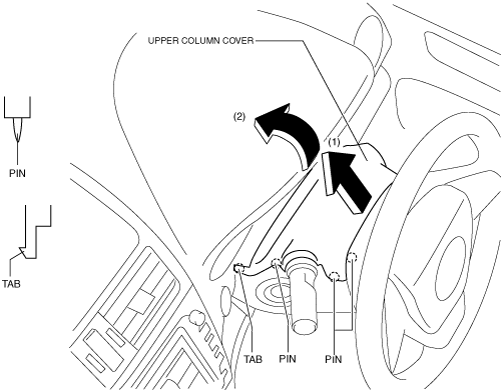

R.H.D.

adejjw00003371

3.  Rotate the steering wheel to the left and right until it reaches the positions shown in the figure and remove screws.

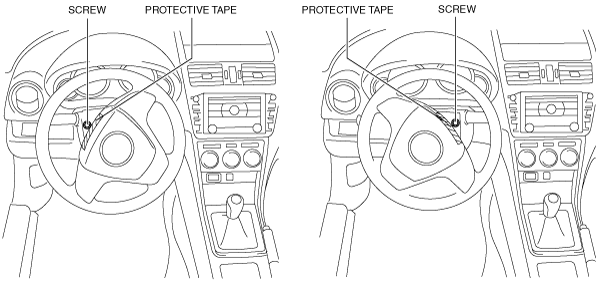

L.H.D.

adejjw00003372

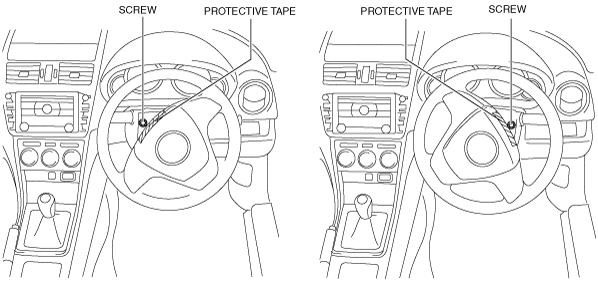

R.H.D.

adejjw00003373

4.  Pull up the steering wheel.

5.  Remove the lower column cover in the direction of the arrow (4) while keeping it open in the direction of the arrow (3) shown in the figure.

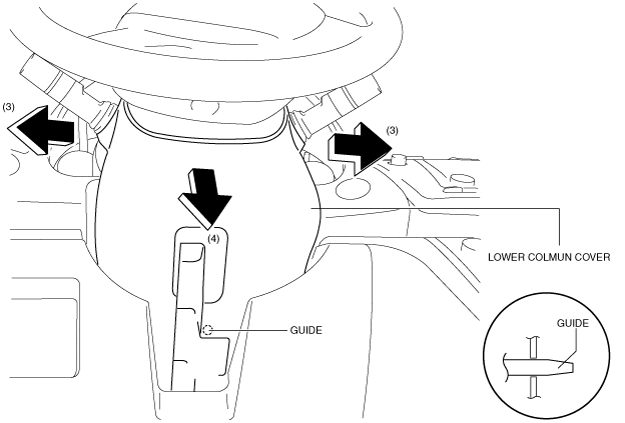

L.H.D.

adejjw00003374

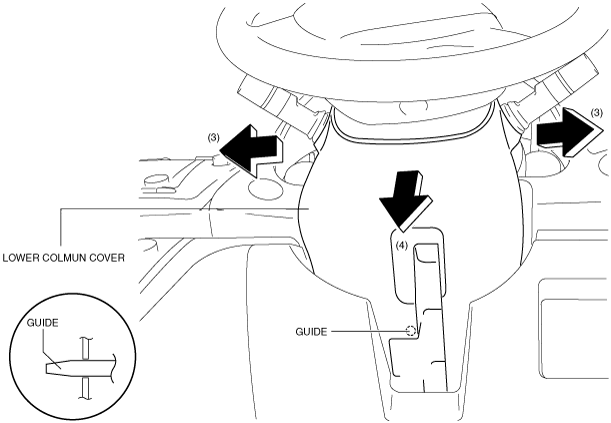

R.H.D.

adejjw00003375

Caution

•  Be careful not to damage the guide during removal.

6.  Install in the reverse order of removal.
