INNER GARNISH REMOVAL/INSTALLATION

id091700801000

1.  Disconnect the negative battery cable.

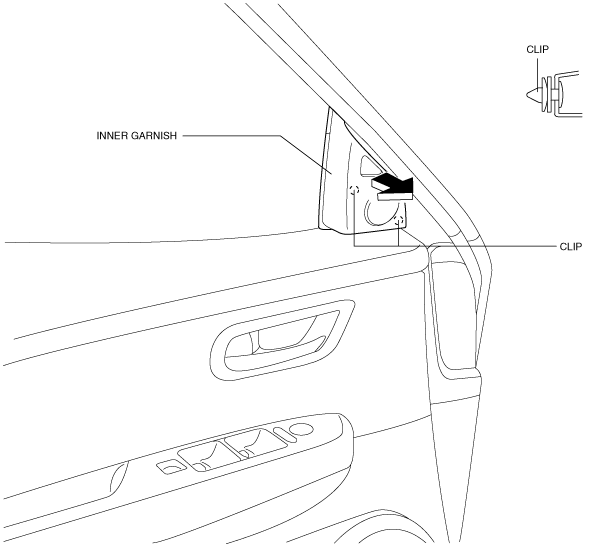

2.  Pull the inner garnish in the direction of the arrow shown in the figure and remove it while detaching clips.

am6zzw00001731

3.  Disconnect the front tweeter connector. (Vehicles with tweeter)

4.  Install in the reverse order of removal.
