TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION

id091700803200

5HB

1.  Disconnect the negative battery cable. (LH only)

2.  Fold the rear seat back.

3.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION)

4.  Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION)

5.  Remove the screws.

am6zzw00001761

6.  Remove the rear seat remote lever.

7.  Pull the trunk side upper trim in the direction of the arrow shown in the figure and remove it while detaching clip A and B.

8.  Remove the cargo compartment light connector. (LH only)

9.  Install in the reverse order of removal.

Wagon

1.  Fold the rear seat back.

2.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION)

3.  Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION)

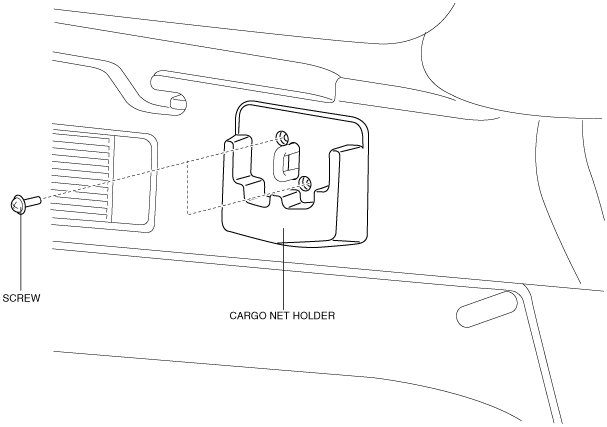

4.  Remove the screws then remove the cargo net holder.

am6zzw00003418

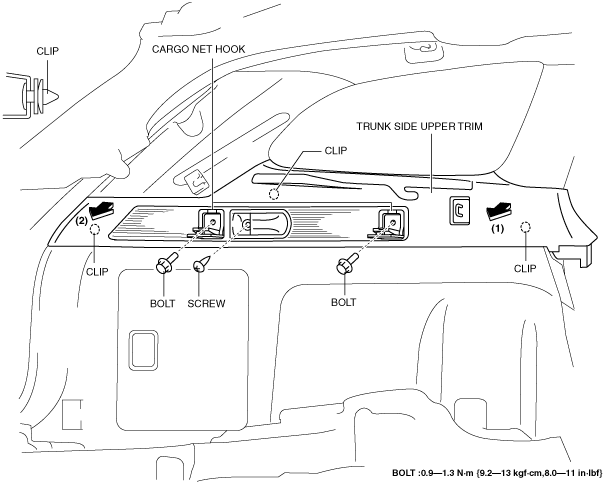

5.  Remove the bolts then remove the cargo net hook.

am6zzw00003419

6.  Remove the screw.

7.  Pull the trunk side upper trim in the direction of the arrow (1) and (2) then detaching clip.

8.  Install in the reverse order of removal.
