TRUNK END TRIM REMOVAL/INSTALLATION

id091700803400

4SD

1.  Open the trunk lid.

2.  Remove the trunk mat.

3.  Remove the trunk board.

4.  Remove the fasteners.

am6zzw00007260

5.  Pull the trunk end trim in the direction of the arrow shown in the figure and remove it while detaching the clips and pins.

6.  Install in the reverse order of removal.

5HB

1.  Open the liftgate.

2.  Remove the trunk mat.

3.  Remove the trunk board.

4.  Partially peel back the seaming welt.

5.  Remove the fasteners.

am6zzw00007261

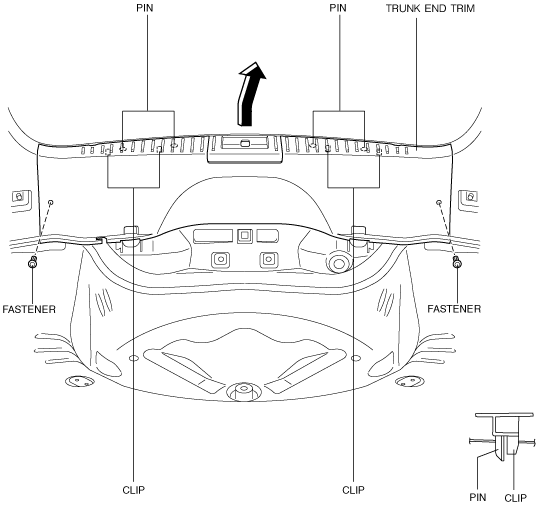

6.  Pull the trunk end trim in the direction of the arrow shown in the figure and remove it while detaching the clips and pins.

7.  Install in the reverse order of removal.

Wagon

1.  Open the liftgate.

2.  Remove the trunk board.

3.  Remove the sub-trunk.

4.  Peel the seaming welt.

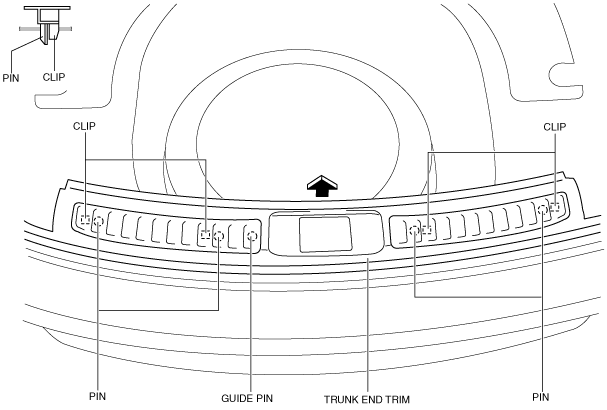

5.  Pull the trunk end trim in the direction of the arrow shown in the figure and remove it while detaching the guide pin, clips, and pins.

am6zzw00003524

6.  Remove the trunk end trim.

7.  Install in the reverse order of removal.
