LIFTGATE UPPER TRIM REMOVAL/INSTALLATION

id091700803600

5HB

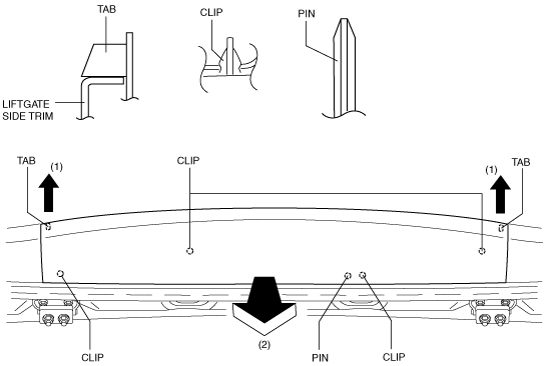

1.  Pull the liftgate upper trim in the direction of the arrow (1) while detaching tab.

am6zzw00001794

2.  Pull the liftgate upper trim in the direction of the arrow (2) shown in the figure, detach pin and clips

3.  Remove the liftgate upper trim.

4.  Install in the reverse order of removal.

Wagon

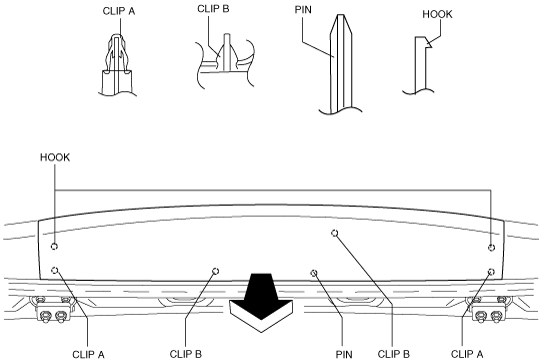

1.  Pull the liftgate upper trim in the direction of the arrow while detaching clips A, B, pin and hooks.

am6zzw00001795

2.  Remove the liftgate upper trim.

3.   Install in the reverse order of removal.
