FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY
id091700804200
Driver-side

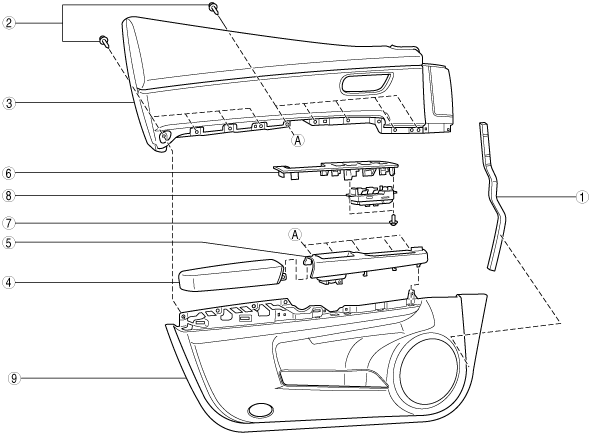

1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
L.H.D.
am6zzw00001773
|
R.H.D.
am6zzw00001774
|
|
1
|
Insulator
|
|
2
|
Screw A
|
|
3
|
Front door upper trim
|
|
4
|
Front armrest
|
|
5
|
Center frame
|
|
6
|
Main switch panel
|
|
7
|
Screw B
|
|
8
|
Power window main switch
|
|
9
|
Front door lower trim
|
Passenger-side
1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.

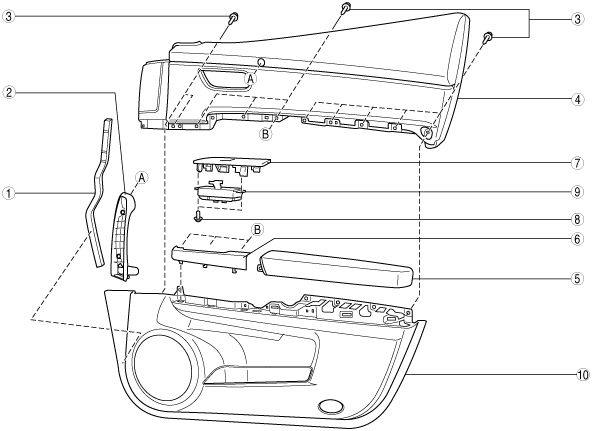

L.H.D.
am6zzw00002712
|

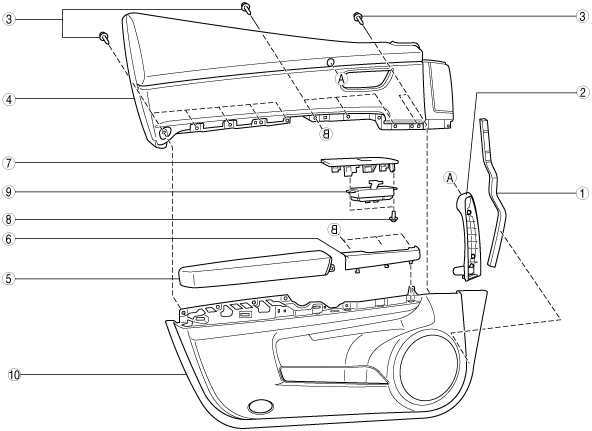

R.H.D.
am6zzw00002713
|
|
1
|
Insulator
|
|
2
|
Front assist handle
|
|
3
|
Screw A
|
|
4
|
Front door upper trim
|
|
5
|
Front armrest
|
|
6
|
Center frame
|
|
7
|
Subswitch panel
|
|
8
|
Screw B
|
|
9
|
Power window subswitch
|
|
10
|
Front door lower trim
|
