REAR DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700804300

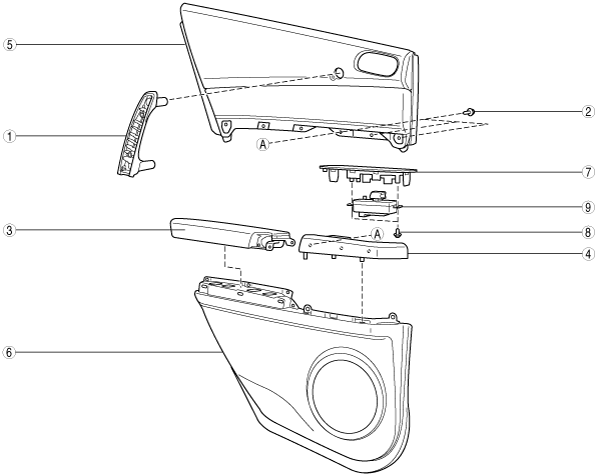

1.  Disassemble in the order shown in the figure.

2.  Assemble in the reverse order of disassembly.

am6zzw00001776

1	Rear assist handle
2	Screw A
3	Center frame
4	Front armrest
5	Rear door upper trim
6	Rear door lower trim
7	Switch panel
8	Screw B
9	Power window subswitch
