DASHBOARD UNDER COVER REMOVAL/INSTALLATION

id091700807200

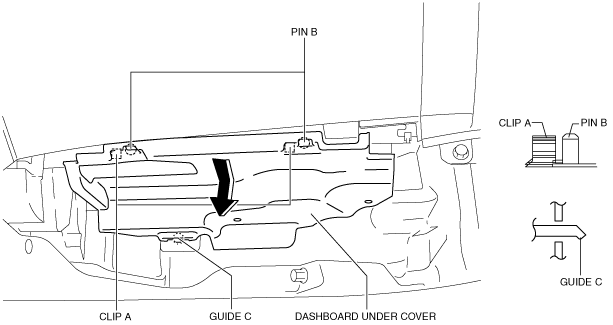

1.  Detach clips A, pins B and guide C by pulling them in the direction of the arrow.

L.H.D.

am6zzw00004545

R.H.D.

am6zzw00004546

2.  Remove the dashboard under cover.

3.  Install in the reverse order of removal.
