UPPER PANEL REMOVAL/INSTALLATION

id091700898300

1.  Open the cover.

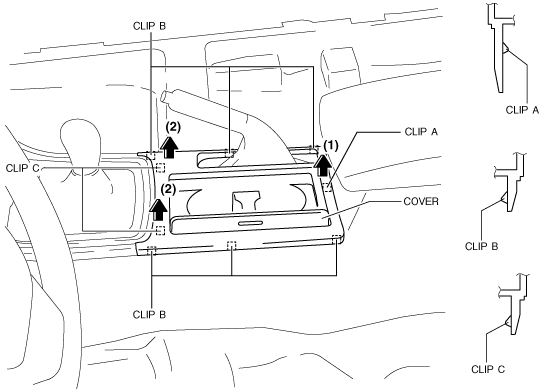

2.  Pull the upper panel in the direction of the arrow in the order of (1) and (2), then remove it while detaching the clip A, B and C.

am6zzw00004792

Caution

•  When removing clip C, press the connecting part of the center lower panel with a hand to prevent damage to clip C.

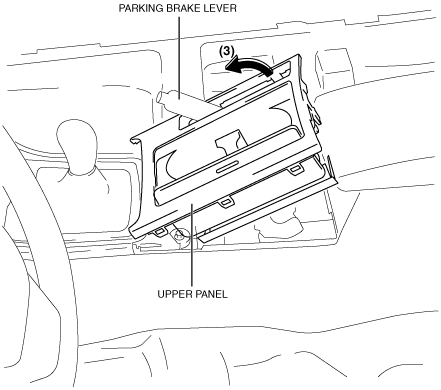

3.  Move the upper panel in the direction of the arrow in the order of (3) while set the parking brake lever out of the way.

am6zzw00004793

4.  Remove the upper panel.

5.  Install in the reverse order of removal.
