TURN LIGHT SYSTEM OPERATION

id091800107400

• The turn light operation is controlled by the BCM.

• When a turn switch on signal is input, the BCM flashes the front, rear, and side turn lights.

• By only operating the turn switch halfway and releasing, the BCM flashes the front, rear, and side turn lights twice automatically.

Note

• This function can be optionally turned on or off using the Mazda Modular Diagnostic System (M-MDS). The initial setting is on.

Turn Light Operation

1. When the switch the ignition to ON and a turn switch on signal is input to the BCM, the BCM flashes the turn lights once.

2. When the switch the ignition to off signal is input to the BCM before the turn lights flash a second time, the BCM flashes the turn lights two more times automatically.

am6xun00000694

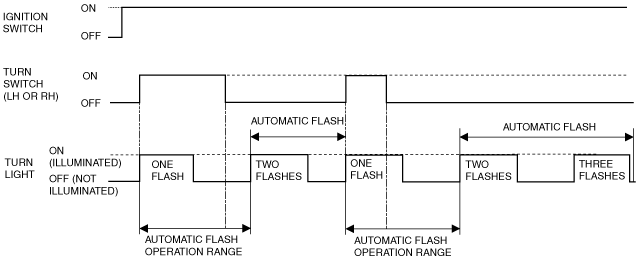

3. When a turn switch on signal is input to the BCM while the turn lights are flashing twice automatically, the automatic flash function ends.

am6xun00000647
