AFS (ADAPTIVE FRONT LIGHTING SYSTEM) STRUCTURE

id091800692400

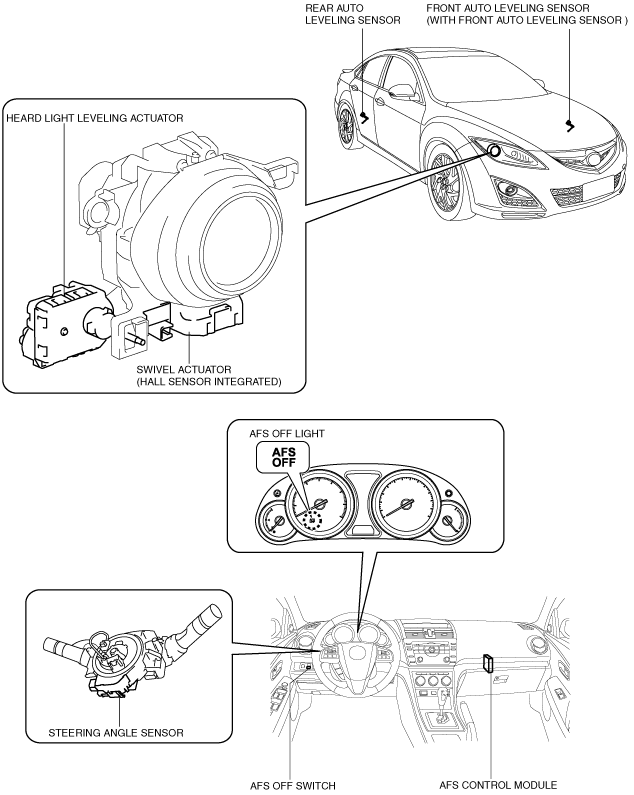

• The AFS (Adaptive front lighting system) consists of the following parts.

― Swivel actuator (hall sensor integrated)

― Headlight leveling actuator

― AFS control module

― AFS OFF switch

― AFS OFF light

― Steering angle sensor

― Front auto leveling sensor (with front auto leveling sensor)

― Rear auto leveling sensor

am6zzn00001733
