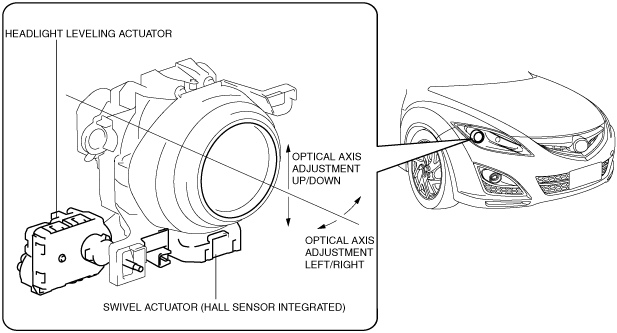

AFS (ADAPTIVE FRONT LIGHTING SYSTEM) CONSTRUCTION
id091800692600
• A swivel actuator and a headlight leveling actuator are integrated into the front combination light.
• The swivel actuator has an internal hall sensor and inputs the current position of the headlight to the AFS control module.
• The swivel actuator adjusts the optical axis horizontally, and the headlight leveling actuator adjusts vertically.
