HEADLIGHT AIMING

id091800800400

With AFS (Adaptive front lighting system)

Note

•  The reflectors for the low and high beams are integrated. Therefore, perform the headlight aiming adjustment on either the low or high beam.

Low-beam adjustment

1.  Point the headlight beams to a wall and verify that the headlight beams are as shown in the figure.

am6zzw00003798

2.  Make a headlight adjustment screen as shown in the figure using double-weight, white paper.

am6zzw00006214

3.  Adjust the tire pressure to the specification.

4.  Position the unloaded vehicle on a flat, level surface.

5.  Sit on the driver-side seat alone.

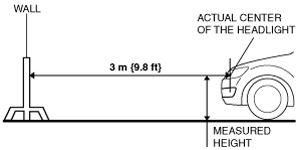

6.  Line up the headlights with the wall at a distance of 3 m {9.8 ft} apart.

am6zzw00006059

7.  Measure the height at the center of the headlight.

Note

•  Since the height of the vehicle varies depending on the vehicle situation, measure the height of the center of the headlight using the actual vehicle.

am6zzw00006227

8.  Align the center of the headlight with the center of the screen.

am6zzw00005580

9.  Block the light of the headlight which is not adjusted.

10.  Start the engine and charge the battery.

11.  Turn on the headlight low beams.

12.  Verify that the elbow point of the headlight is in the position indicated on the screen.

•  If the elbow point is not at the position indicated by the adjustment screen, turn the adjustment screw as shown in the figure to adjust the elbow point to the position indicated by the adjustment screen.

am6zzw00006857

High-beam adjustment

1.  Make a headlight adjustment screen as shown in the figure using double-weight, white paper.

am6zzw00003789

2.  Adjust the tire pressure to the specification.

3.  Park the vehicle on level ground, in an unloaded condition.

4.  Sit on the driver-side seat alone.

5.  Put the wall in front of the vehicle.

6.  Line up the headlights with the wall at a distance of 3 m {9.8 ft} apart.

am6zzw00006059

7.  Measure the height at the center of the headlight.

Note

•  Since the height of the vehicle varies depending on the vehicle situation, measure the height of the center of the headlight using the actual vehicle.

am6zzw00006227

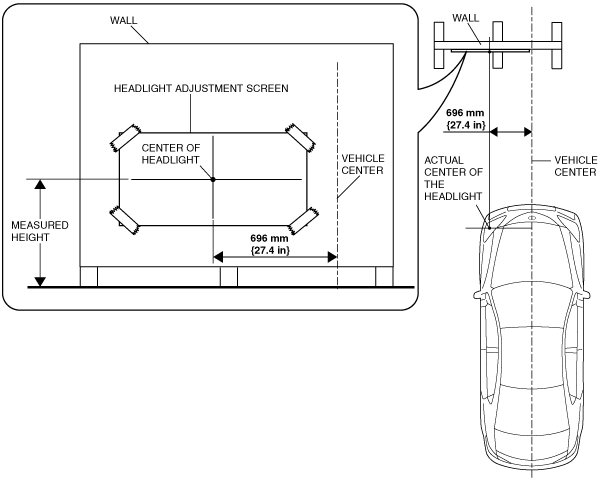

8.  Align the center of the adjustment screen with the position indicated in the figure, then affix the screen to the wall.

am6zzw00006858

9.  Start the engine and charge the battery.

10.  Turn on the headlight high beams.

11.  Block the light of the headlight which is not adjusted.

12.  Verify that the center of the hot zone (the bright part of high beam) is at the center of the headlight on the adjustment screen.

am6zzw00003791

•  If the center of the hot zone is not at the center of the headlight on the adjustment screen, turn the adjustment screw to adjust the center of the hot zone.

am6zzw00006857

Without AFS (Adaptive front lighting system)

Low-beam adjustment

1.  Point the headlight beams to a wall and verify that the headlight beams are as shown in the figure.

am6zzw00003798

2.  Make a headlight adjustment screen as shown in the figure using double-weight, white paper.

am6zzw00006214

3.  Adjust the tire pressure to the specification.

4.  Position the unloaded vehicle on a flat, level surface.

5.  Sit on the driver-side seat alone.

6.  Line up the headlights with the wall at a distance of 3 m {9.8 ft} apart.

am6zzw00006059

7.  Measure the height at the center of the headlight.

Note

•  Since the height of the vehicle varies depending on the vehicle situation, measure the height of the center of the headlight using the actual vehicle.

am6zzw00006227

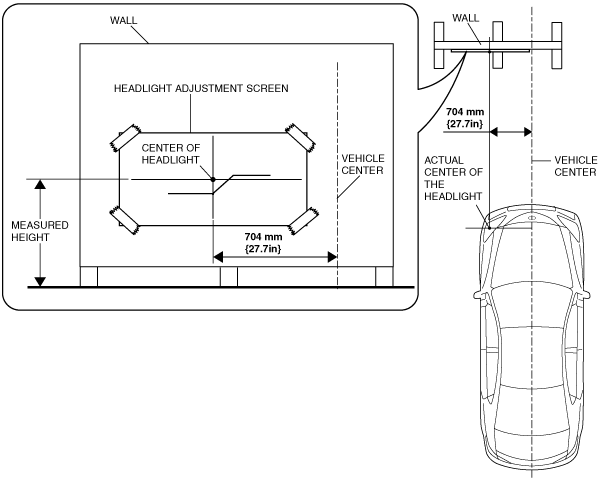

8.  Align the center of the headlight with the center of the screen.

am6zzw00005582

9.  Block the light of the headlight which is not adjusted.

10.  Start the engine and charge the battery.

11.  Turn on the headlight low beams.

12.  Set the headlight leveling switch to the 0 position. (vehicles with headlight leveling switch)

13.  Verify that the elbow point of the headlight is in the position indicated on the screen.

•  If the elbow point is not at the position indicated by the adjustment screen, turn the adjustment screw as shown in the figure to adjust the elbow point to the position indicated by the adjustment screen.

am6zzw00005583

High-beam adjustment

1.  Make a headlight adjustment screen as shown in the figure using double-weight, white paper.

am6zzw00003789

2.  Adjust the tire pressure to the specification.

3.  Park the vehicle on level ground, in an unloaded condition.

4.  Sit on the driver-side seat alone.

5.  Put the wall in front of the vehicle.

6.  Line up the headlights with the wall at a distance of 3 m {9.8 ft} apart.

am6zzw00006059

7.  Measure the height at the center of the headlight.

Note

•  Since the height of the vehicle varies depending on the vehicle situation, measure the height of the center of the headlight using the actual vehicle.

am6zzw00006216

8.  Align the center of the adjustment screen with the position indicated in the figure, then affix the screen to the wall.

am6zzw00005585

9.  Start the engine and charge the battery.

10.  Turn on the headlight high beams.

11.  Block the light of the headlight which is not adjusted.

12.  Verify that the center of the hot zone (the bright part of high beam) is at the center of the headlight on the adjustment screen.

am6zzw00003791

•  If the center of the hot zone is not at the center of the headlight on the adjustment screen, turn the adjustment screw to adjust the center of the hot zone.

am6zzw00006217
