FRONT TURN LIGHT BULB REMOVAL/INSTALLATION

id091800805000

With AFS (Adaptive Front Lighting System)

1.  Disconnect the negative battery cable.

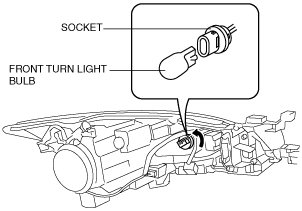

2.  Rotate the socket in the direction of the arrow shown in the figure to remove it.

am6zzw00006054

3.  Remove the front turn light bulb.

4.  Install in the reverse order of removal.

Without AFS (Adaptive Front Lighting System)

1.  Disconnect the negative battery cable.

2.  Rotate the socket in the direction of the arrow shown in the figure to remove it.

am6zzw00006055

3.  Remove the front turn light bulb.

4.  Install in the reverse order of removal.
