AUTO LEVELING SENSOR REMOVAL/INSTALLATION

id091800805700

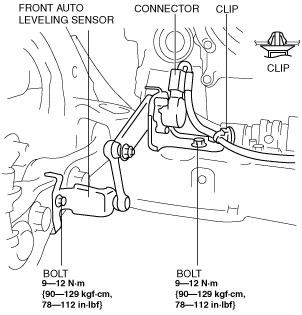

Front (With Front Auto Leveling Sensor)

1.  Disconnect the negative battery cable.

2.  Lift up the vehicle.

3.  Turn the steering wheel to the right.

4.  Slightly bend back the mudguard.

5.  Remove the bolts.

am6zzw00007277

6.  Disconnect the connector.

7.  Remove the clip.

8.  Remove the front auto leveling sensor.

9.  Install in the reverse order of removal.

10.  Perform the auto leveling system initialization. (See AUTO LEVELING SYSTEM INITIALIZATION.)

Rear

1.  Disconnect the negative battery cable.

2.  Lift up the vehicle.

3.  Remove the nuts shown in the figure.

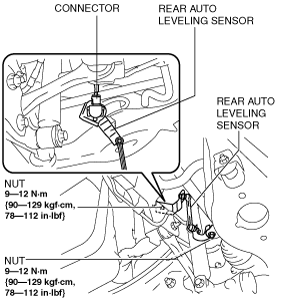

2WD

am6zzw00007391

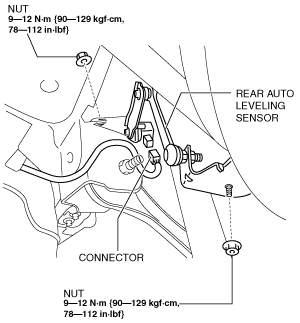

4WD

am6zzw00006263

4.  Disconnect the connector.

5.  Remove the rear auto leveling sensor.

6.  Install in the reverse order of removal.

7.  Perform the auto leveling system initialization. (See AUTO LEVELING SYSTEM INITIALIZATION.)
