INBOARD LIGHT BULB REMOVAL/INSTALLATION

id091800806000

4SD

1. Disconnect the negative battery cable.

2. Partially peel back the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

3. Remove in the order indicated in the table.

am6zzw00005571

1

Rear fog light bulb connector (driver-side) (with rear fog light), back-up light bulb connector (driver-side) (without rear fog light)/back-up light bulb connector (passenger-side)

2

Socket

3

Rear fog light bulb (driver-side) (with rear fog light), back-up light bulb (driver-side) (without rear fog light)/back-up light bulb (passenger-side)

4. Install in the reverse order of removal.

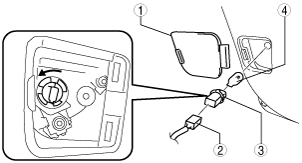

5HB, WGN

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

am6zzw00005572

1

Service hole cover

2

Rear fog light bulb connector (driver-side) (with rear fog light), back-up light bulb connector (driver-side) (without rear fog light)/back-up light bulb connector (passenger-side)

3

Socket

4

Rear fog light bulb (driver-side) (with rear fog light), back-up light bulb (driver-side) (without rear fog light)/back-up light bulb (passenger-side)

3. Install in the reverse order of removal.

1	Rear fog light bulb connector (driver-side) (with rear fog light), back-up light bulb connector (driver-side) (without rear fog light)/back-up light bulb connector (passenger-side)
2	Socket
3	Rear fog light bulb (driver-side) (with rear fog light), back-up light bulb (driver-side) (without rear fog light)/back-up light bulb (passenger-side)

1	Service hole cover
2	Rear fog light bulb connector (driver-side) (with rear fog light), back-up light bulb connector (driver-side) (without rear fog light)/back-up light bulb connector (passenger-side)
3	Socket
4	Rear fog light bulb (driver-side) (with rear fog light), back-up light bulb (driver-side) (without rear fog light)/back-up light bulb (passenger-side)
