SIDE TURN LIGHT REMOVAL/INSTALLATION

id091800811500

Front Fender Panel Type

1.  Disconnect the negative battery cable.

2.  Move the side turn light in the direction of the arrow (1) and detach the tab.

am6zzw00006754

3.  Pull area A of the side turn light in the direction of the arrow (2) and remove the side turn light.

4.  Disconnect the side turn light connector.

5.  Install in the reverse order of removal.

Power Outer Mirror Type

1.  Disconnect the negative battery cable.

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

3.  Remove the outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

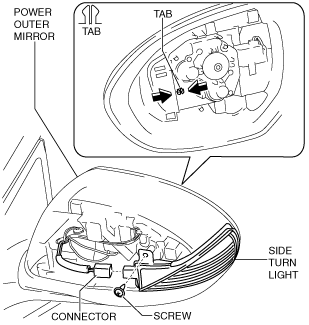

4.  Remove the screw.

am6zzw00006861

5.  Disconnect the connector.

6.  Remove the side turn light while detaching tab.

7.  Install in the reverse order of removal.
