WINDSHIELD WIPER MOTOR DISASSEMBLY/ASSEMBLY
id091900801000

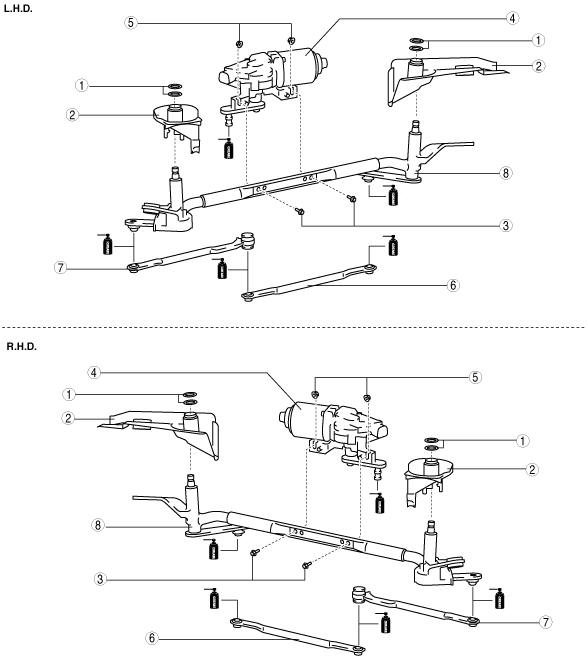

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
am6zzw00005933
|
|
1
|
Washer
|
|
2
|
Cover
|
|
3
|
Bolt
|
|
4
|
Windshield wiper motor
|
|
5
|
Nut
|
|
6
|
Wiper link No. 1
(See Ball Joint Assembly Note.)
|
|
7
|
Wiper link No. 2
(See Ball Joint Assembly Note.)
|
|
8
|
Main link
(See Ball Joint Assembly Note.)
|
Ball Joint Assembly Note
1. Use a clean cloth to protect the link, and squeeze using pliers.
am3uuw00004871
|
Windshield Wiper Motor Assembly Note
1. Connect the windshield wiper motor to the vehicle wiring harness connector, operate the windshield wipers, and then stop them at the auto-stop position.

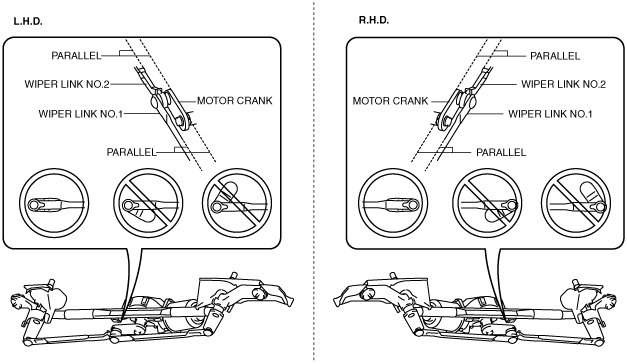

2. Adjust the motor crank and wiper link No.1 so that they are parallel as shown in the figure.
am6zzw00005936
|
3. Assemble the windshield wiper motor.
