GLASS ANTENNA INSPECTION

id092000806200

1.  Inspect the glass antenna for damage visually.

2.  Inspect for continuity between the glass antenna terminals using an ohmmeter.

4SD

am6zzw00003226

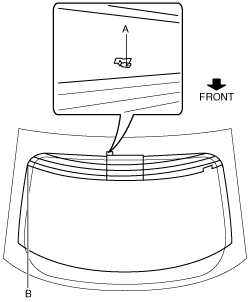

5HB

am6zzw00003227

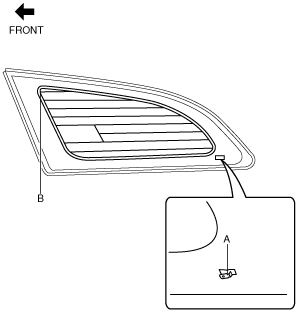

WGN

am6zzw00003228

am6zzw00003229

•  If not as specified, repair the glass antenna. (See FILAMENT REPAIR.)

ac9uuw00000591
