BASS-BOX REMOVAL/INSTALLATION

id092000815200

5HB

1.  Disconnect the negative battery cable.

2.  Disconnect the connector.

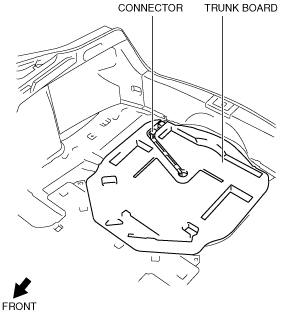

am6zzw00001596

3.  Remove the trunk board.

4.  Remove the clip.

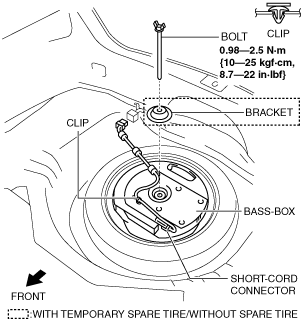

am6zzw00001597

5.  Disconnect the short-cord connector.

6.  Remove the short-cord.

7.  Remove the bolt.

8.  Remove the bracket. (with temporary spare tire/without spare tire)

9.  Remove the bass-box.

10.  Install in the reverse order of removal.

WGN

1.  Disconnect the negative battery cable.

2.  Remove the clip.

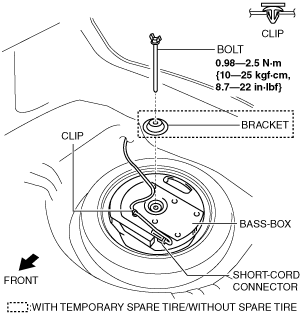

am6zzw00003233

3.  Disconnect the short-cord connector.

4.  Slightly bend back the short-cord.

5.  Remove the bolt.

6.  Remove the bracket. (with temporary spare tire/without spare tire)

7.  Remove the bass-box.

8.  Install in the reverse order of removal.
