STEERING SWITCH INSPECTION

id092000822400

Without Bluetooth System

1.  Disconnect the negative battery cable and wait for 1 min or more.

2.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Disconnect the steering switch connector.

4.  Verify the resistance between the steering switch terminals.

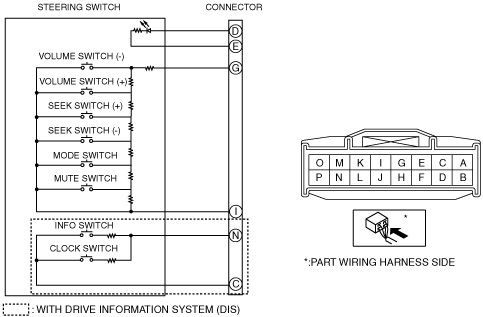

am6zzw00006091

•  If not within the specification, replace the steering switch.

am6zzw00005109

With drive information system (DIS)

am6zzw00006096

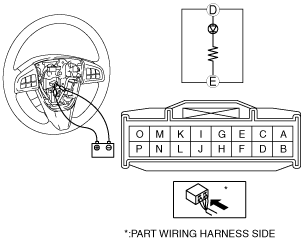

5.  Apply battery positive voltage to steering switch terminal D, and connect terminal E to ground.

am6zzw00006092

6.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the steering switch.

With Bluetooth System

1.  Disconnect the negative battery cable and wait for 1 min or more.

2.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Disconnect the steering switch connector.

4.  Verify the resistance between the steering switch terminals.

am6zzw00006094

•  If not within the specification, replace the steering switch.

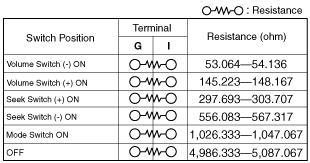

am6zzw00005111

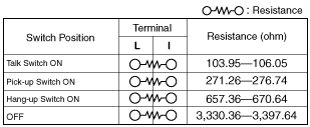

am6zzw00005112

am6zzw00006093

5.  Apply battery positive voltage to steering switch terminal D, and connect terminal E to ground.

am6zzw00006092

6.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the steering switch.
