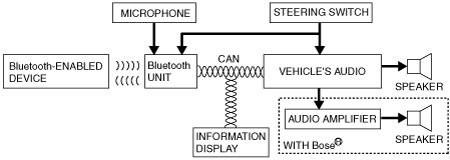

•  Consists of the following parts.

am3uun00000885

•  Communication between the Bluetooth-enabled device and the Bluetooth unit is performed via radio waves. The frequency range is 2.4 GHz, and transmission is possible within an approx. 10 m (32 ft) area.

•  Transmission between the Bluetooth unit, the vehicle’s audio and the information display is performed via the CAN system.

•  The vehicle’s audio outputs the signals from the Bluetooth unit to the speaker (without Bose^®) or the audio amplifier (with Bose^®).

•  The vehicle’s microphone is connected to the Bluetooth unit. The Bluetooth unit sends the voice spoken into the vehicle’s microphone to the Bluetooth-enabled device.
