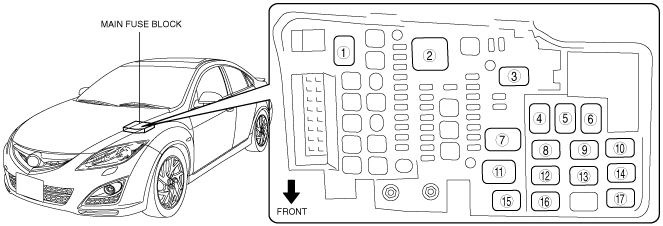

RELAY LOCATION
id092100800600
am6zzw00005541
|
|
1
|
A/C relay
|
|
2
|
Main relay (MZR 1.8, MZR 2.0, MZR 2.0 DISI, MZR 2.5)
|
|
Glow relay (MZR-CD 2.2)
|
|
|
3
|
Headlight low relay
|
|
4
|
Starter relay
|
|
5
|
Horn relay
|
|
6
|
Fuel injector relay (MZR 2.0 DISI)
|
|
7
|
Fuel pump relay (MZR 1.8, MZR 2.0, MZR 2.0 DISI, MZR 2.5)
|
|
Main relay (MZR-CD 2.2)
|
|
|
8
|
Outlet relay
|
|
9
|
Cooling fan relay No.1
|
|
10
|
Cooling fan relay No.2 (Vehicles equipped with two cooling fan relays)
|
|
Cooling fan relay No.3 (Vehicles equipped with three or four cooling fan relays)
|
|
|
11
|
Headlight high relay
|
|
12
|
Cooling fan relay No.2 (Vehicles equipped with three or four cooling fan relays)
|
|
13
|
Cooling fan relay No.4 (Vehicles equipped with four cooling fan relays)
|
|
14
|
Rear window defroster relay
|
|
15
|
AT main relay (ATX)
|
|
16
|
Front fog light relay
|
|
17
|
Blower relay
|
