INFORMATION DISPLAY INPUT/OUTPUT CHECK MODE

id092200801300

Note
•  In this mode, it is possible to verify the items in the following chart.

Check Code Table

Check code

Check item

Related items
01
Information display
CAN system
•  DTC U0010:88: CAN system communication error
02
•  Audio unit
•  Climate control unit
•  Instrument cluster
CAN system
•  DTC U0184:00: Communication error to audio unit
•  DTC U0164:00: Communication error to climate control unit
•  DTC U0155:00: Communication error to instrument cluster
04
Light switch
•  Light switch
•  BCM
06
Ignition switch*1/Push button start*2
Ignition switch*1/Push button start*2
10
Steering switch
•  INFO switch
•  Clock switch
—
LCD/Passenger seat belt reminder indicator
LCD/Passenger seat belt reminder indicator

*1  :Without advanced keyless entry and push button start system
*2  :With advanced keyless entry and push button start system
Note

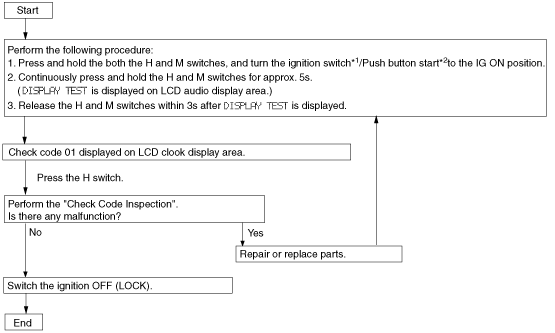

•  The check codes are displayed in numerical order. (While performing the inspection, if you want to inspect a check code with a number smaller than the code number you are currently inspecting, terminate the check mode then repeat the inspection from the beginning.)
am6zzw00006832
*1  :Without advanced keyless entry and push button start system
*2  :With advanced keyless entry and push button start system

Check Code Inspection


Check code 01

Check code 01

CAN system

INSPECTION CONDITION

DISPLAY

ACTION
Select the check code 01.
CAN system of information display is normal.
CAN system communication error. (DTC U0010:88)


Check code 02

Check code 02
•  Communication status to audio unit
•  Communication status to climate control unit
•  Communication status to instrument cluster

INSPECTION CONDITION

DISPLAY

ACTION
Select the check code 02.
(The diagnostic results will be displayed once each in the order of audio unit and climate control unit and instrument cluster.)
Audio unit
Communication to audio unit is normal.
Communication error to audio unit.
(DTC U0184:00)
Vehicle without audio unit.
Climate control unit
Communication to climate control unit is normal.
Communication error to climate control unit. (DTC U0164:00)
Vehicle without climate control unit.
Instrument cluster
Communication to instrument cluster is normal.
Communication error to instrument cluster. (DTC U0155:00)


Check code 04

Check code 04

TNS ON/OFF signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION
1
Turn the light switch to the TNS position.
Go to the next step.
Verify that the voltage of information display terminal C is B+.
•  If the voltage is as specified, replace the information display.
•  If the voltage is not as specified, inspect the following parts:
―  Light switch
―  BCM
―  Wiring harness (BCM—information display)
2
Turn the light switch off.
Verify that the voltage of the information display terminal C is 1.0 V or less.
•   If the voltage is as specified, replace the information display.
•  If the voltage is not as specified, inspect the following parts:
―  Light switch
―  BCM
―  Wiring harness (BCM—information display)
Input signal to the information display is normal.


Check code 06

Check code 06

Ignition switch ON/OFF signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION
1
Switch the ignition to ON.
Go to the next step.
Verify that the voltage of information display terminal E is B+.
•  If the voltage is as specified, replace the information display.
•  If the voltage is not as specified, inspect the following parts:
―  Ignition switch*1
―  Push button start*2
―  Relay block*2
―  Wiring harness*1 (Battery—ignition switch—information display)
―  Wiring harness*2 (Battery—relay block—push button start—information display)
2
Switch the ignition to off.
Verify that the voltage of the information display terminal E is 1.0 V or less.
•  If the voltage is as specified, replace the information display.
•  If the voltage is not as specified, inspect the following parts:
―  Ignition switch*1
―  Push button start*2
―  Relay block*2
―  Wiring harness*1 (Battery—ignition switch—information display)
―  Wiring harness*2 (Battery—relay block—push button start—information display)
Input signal to the information display is normal.

*1  :Without advanced keyless entry and push button start system
*2  :With advanced keyless entry and push button start system


Check code 10

Check code 10

INFO/clock switch ON/OFF signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION
1
While INFO switch is pressed.
Go to the next step.
Except above
•  Inspect the following parts:
―  INFO switch
―  Clock spring
―  Wiring harness (Clock spring—information display)
•  If the INFO switch, clock spring and related wiring harnesses do not have any malfunction, replace the information display.
2
While INFO switch is not pressed.
Go to the next step.
Except above
•  Inspect the following parts:
―  INFO switch
―  Clock spring
―  Wiring harness (Clock spring—information display)
•  If the INFO switch, clock spring and related wiring harnesses do not have any malfunction, replace the information display.
3
While clock switch is pressed.
Go to the next step.
Except above
•  Inspect the following parts:
―  Clock switch
―  Clock spring
―  Wiring harness (Clock spring—information display)
•  If the clock switch, clock spring and related wiring harnesses do not have any malfunction, replace the information display.
4
While clock switch is not pressed.
Input signal to the information display is normal.
Except above
•  Inspect the following parts:
―  Clock switch
―  Clock spring
―  Wiring harness (Clock spring—information display)
•  If the clock switch, clock spring and related wiring harnesses do not have any malfunction, replace the information display.


LCD/Passenger seat belt reminder indicator

Check code —

LCD/Passenger seat belt reminder indicator

DISPLAY

ACTION
All segments and dots illuminated.
LCD/Passenger seat belt reminder indicator is normal.
Except above
Replace the information display.
