FUEL GAUGE SENDER UNIT INSPECTION [MZR-CD 2.2]

id0922008018c3

1.  Disconnect the negative battery cable.

2.  Remove the rear seat cushion (4SD). (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)

3.  Lift the rear seat cushion (5HB/Wagon). (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)

4.  Remove the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [MZR-CD 2.2].)

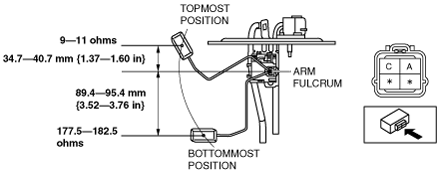

5.  Move the float to the topmost and bottommost positions, and verify that the resistance between terminals A and C of the fuel gauge sender unit and the position of the float are as shown in the figure.

am6zzw00005396

•  If they are not as shown in the figure, replace the fuel gauge sender unit.
