TORQUE BOX REMOVAL [PANEL REPLACEMENT]

id098008607100

Symbol Mark

am6zzb00000020

Removal Procedure

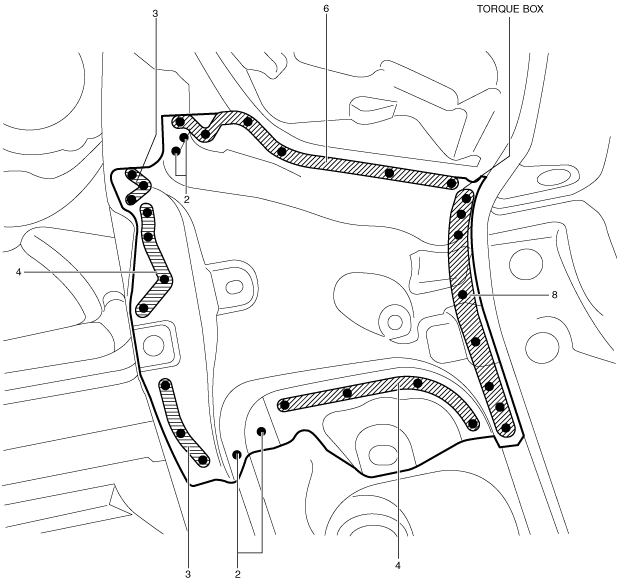

1.  Drill the 32 locations indicated shown in the figure.

am6zzb00000069

2.  Remove the torque box.
