REAR FENDER RAIN RAIL AND CORNER PLATE REMOVAL [PANEL REPLACEMENT]

id098008611900

Symbol Mark

am6zzb00000024

Removal Procedure

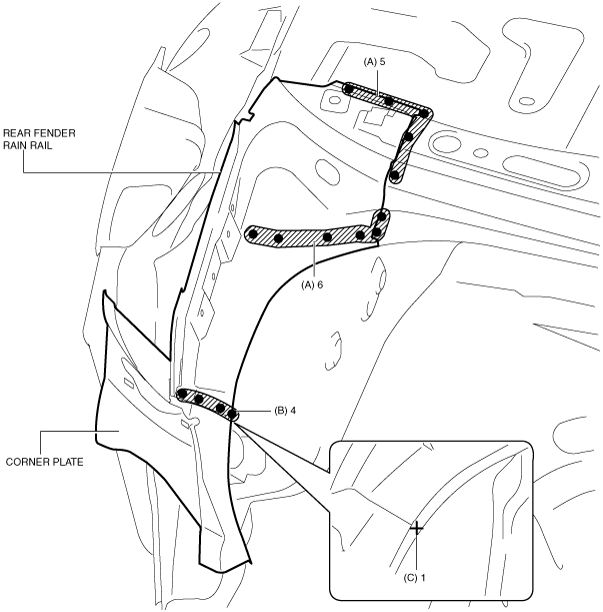

1.  Drill the 11 locations indicated by (A) shown in the figure.

Note

•  When removing the rear fender rain rail and the corner plate separately, drill the 4 locations indicated by (B) and remove the 1 location indicated by (C).

am6zzb00000281

2.  Remove the rear fender rain rail and corner plate.
