REAR FENDER RAIN RAIL AND CORNER PLATE INSTALLATION [PANEL REPLACEMENT]

id098008612000

Symbol Mark

am6zzb00000240

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for plug welds before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

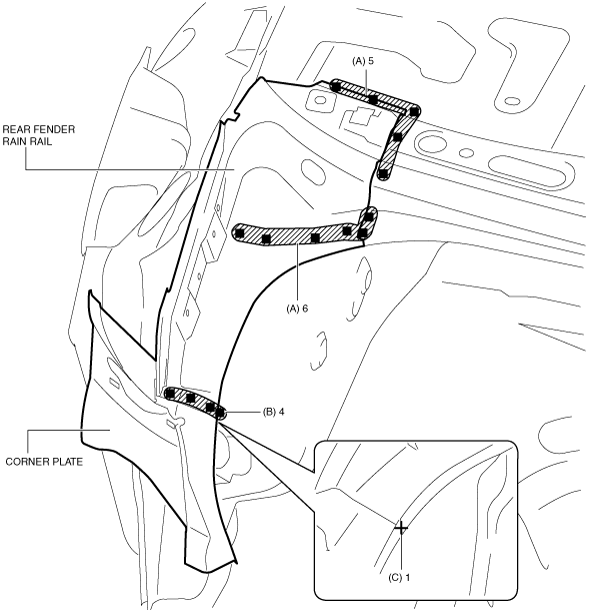

4.  Plug weld the 11 locations indicated by (A) shown in the figure.

Note

•  When replacing the rear fender rain rail and corner plate separately, weld the 4 locations indicated by (B) and 1 location indicated by (C).

am6zzb00000282
