FLOOR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008618700

Symbol Mark

am6zzb00000028

Removal Procedure

1.  Drill the 10 locations indicated by (A) shown in the figure.

am6zzb00000108

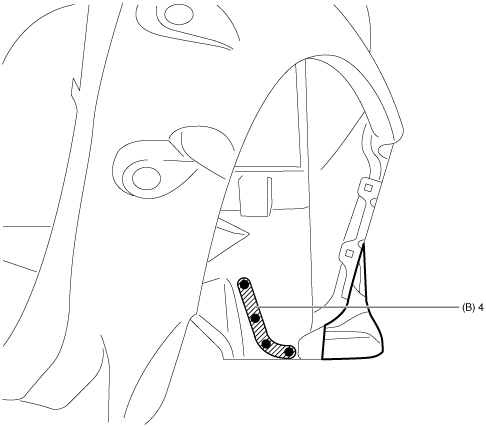

2.  Drill the 4 locations indicated by (B) from the rear wheel housing.

am6zzb00000109

3.  Remove the floor side panel.
