WHEEL APRON PANEL (FRONT) REMOVAL [PANEL REPLACEMENT]

id098008741100

Symbol Mark

am6zzb00000018

Removal Procedure

Left-side

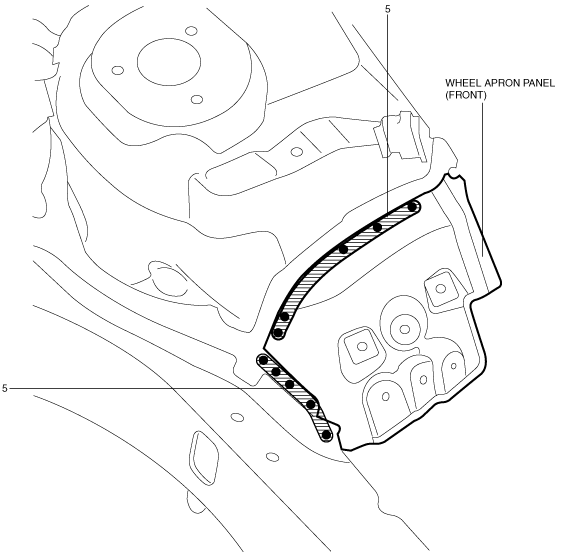

1.  Drill the 10 locations indicated shown in the figure.

am6zzb00000058

2.  Remove the wheel apron panel (front).

Right-side

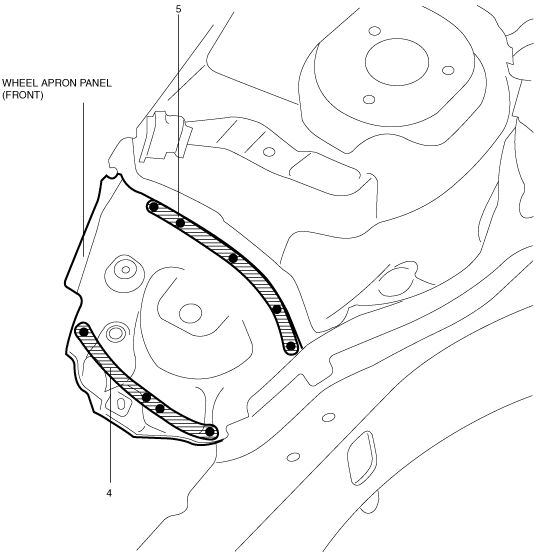

1.  Drill the 9 locations indicated shown in the figure.

am6zzb00000156

2.  Remove the wheel apron panel (front).
