APRON REINFORCEMENT (LOWER) INSTALLATION [PANEL REPLACEMENT]

id098008741400

Symbol Mark

am6zzb00000056

Installation Procedure

Left-side

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

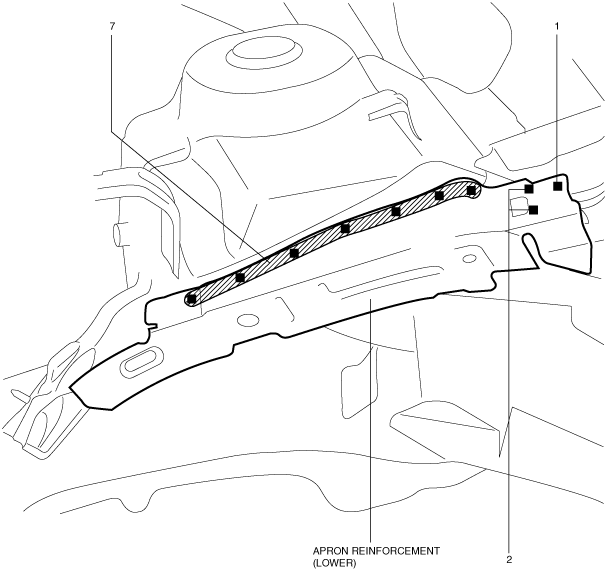

4.  Plug weld the 10 locations indicated shown in the figure.

am6zzb00000153

Right-side

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 14 locations indicated shown in the figure.

am6zzb00000154
