FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008742100

Symbol Mark

am6zzb00000010

Removal Procedure

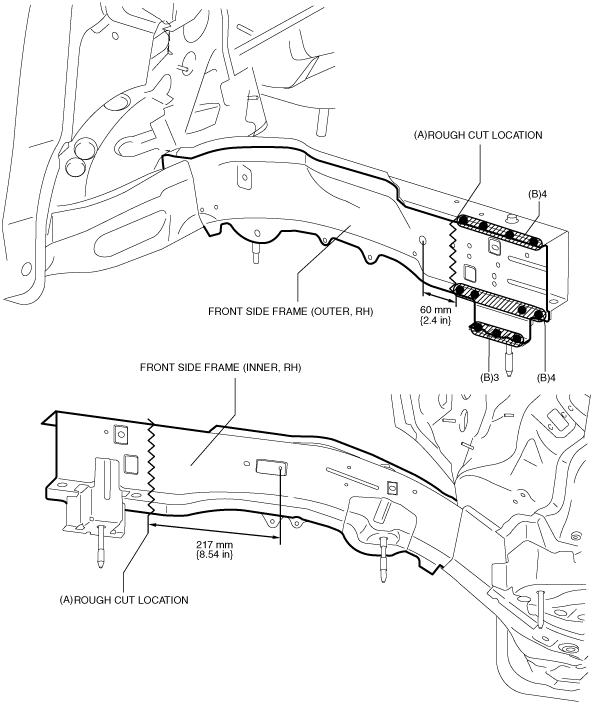

Right-side

Caution

•  The rough cut area indicates the maximum size range of the installation position.

1.  Rough cut area (A), drill the 11 locations indicated by (B), and then remove the front side frame.

am6zzb00000002

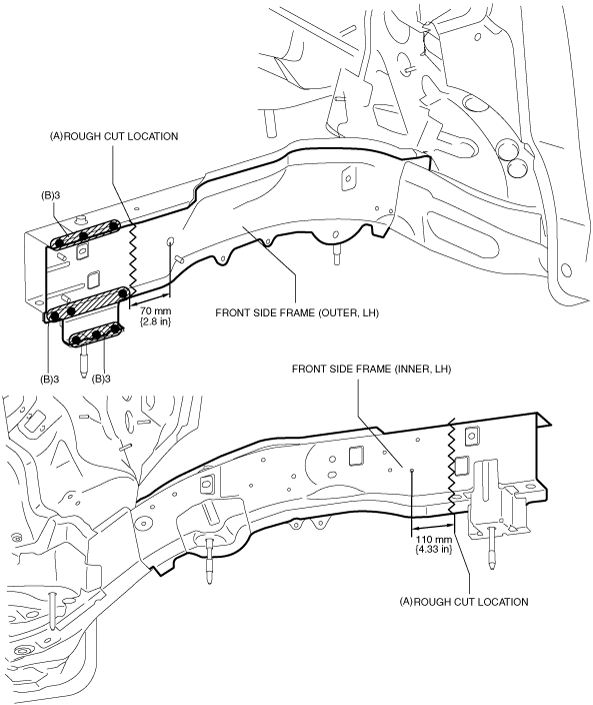

Left-side

Caution

•  The rough cut area indicates the maximum size range of the installation position.

1.  Rough cut area (A), drill the 9 locations indicated by (B), and then remove the front side frame.
