REAR FLOOR PAN REMOVAL [PANEL REPLACEMENT]

id098008742700

Symbol Mark

adejjb00000042

Removal Procedure

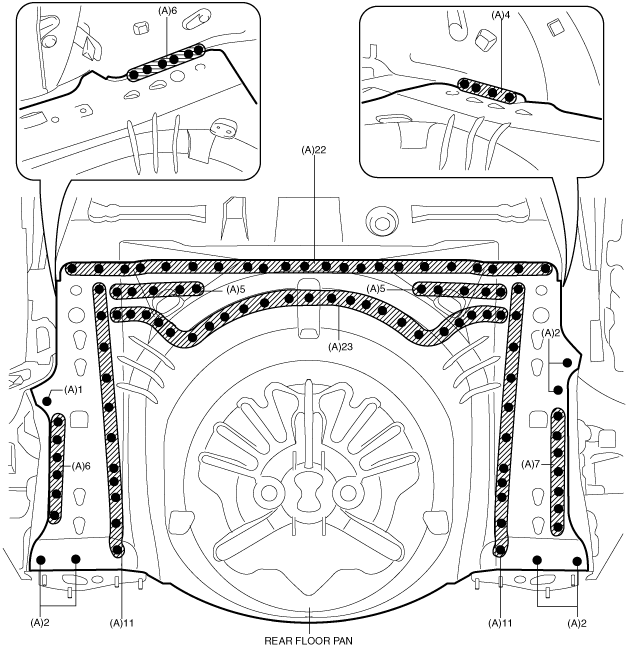

1.  Drill the 107 locations indicated by (A) shown in the figure.

am6zzb00000257

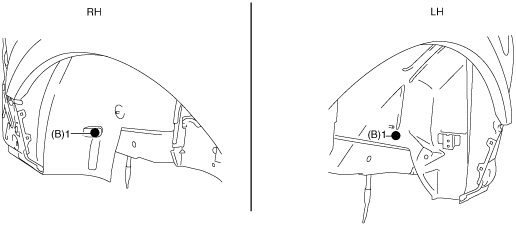

2.  Drill the 2 locations indicated by (B) from the rear wheel housing.

am6zzb00000113
