REAR FLOOR PAN INSTALLATION [PANEL REPLACEMENT]

id098008742800

Symbol Mark

am2zzb00000035

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.   After temporarily installing new parts, make sure the related parts fit properly.

4.  Apply spot sealer to the areas where both the overlapping ends of the new and existing parts will be welded. Adhere the sections to be welded, and fillet weld along both seams.

5.  Apply body sealer to the joints of old and new parts for waterproofing and rust protection.

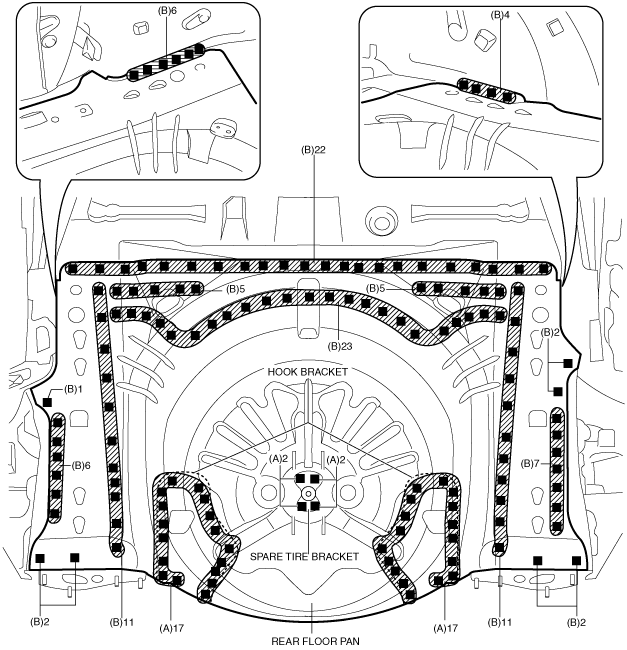

6.  Plug weld the 38 locations indicated by (A), then install the spare tire bracket and hook bracket.

am6zzb00000258

7.  Plug weld the 107 locations indicated by (B) shown in the figure.

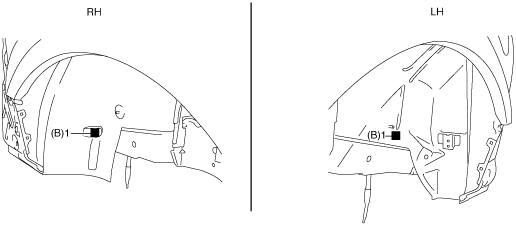

8.  Plug weld the 2 locations indicated by (B) from the rear wheel housing.

am6zzb00000192
