SIDE SILL PANEL REMOVAL [PANEL REPLACEMENT]


id098008743700


Symbol Mark

am2zzb00000094

Removal Procedure

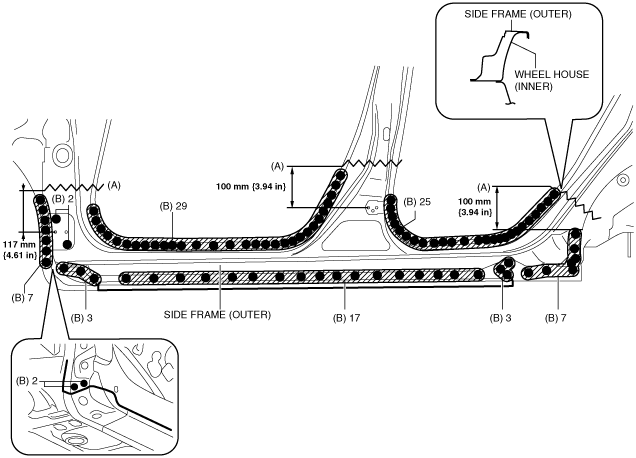

1.  Rough cut area locations indicated by (A) then drill the 95 locations indicated by (B) shown in the figure.

am6zzb00000087

Caution
•  During rough cutting, be careful not to damage the wheel house (inner).

2.  Remove the side frame (outer).

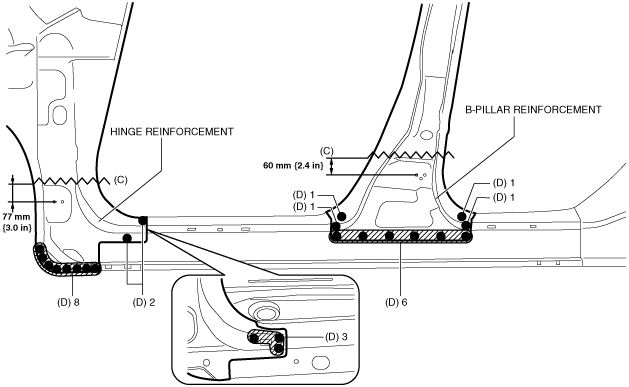

3.  Rough cut area locations indicated by (C) then drill the 23 locations indicated by (D) shown in the figure.

am6zzb00000088

4.  Remove the hinge reinforcement and B-pillar reinforcement.

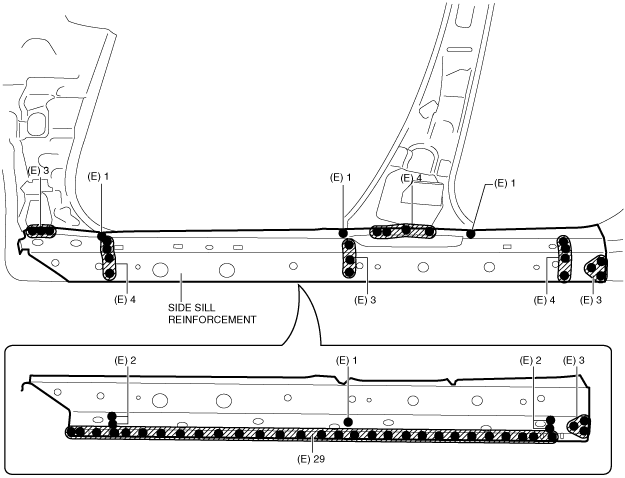

5.  Drill the 61 locations indicated by (E) shown in the figure

am6zzb00000089

6.  Remove the side sill reinforcement.
