SIDE SILL PANEL INSTALLATION [PANEL REPLACEMENT]

id098008743800

Symbol Mark

am6zzb00000243

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

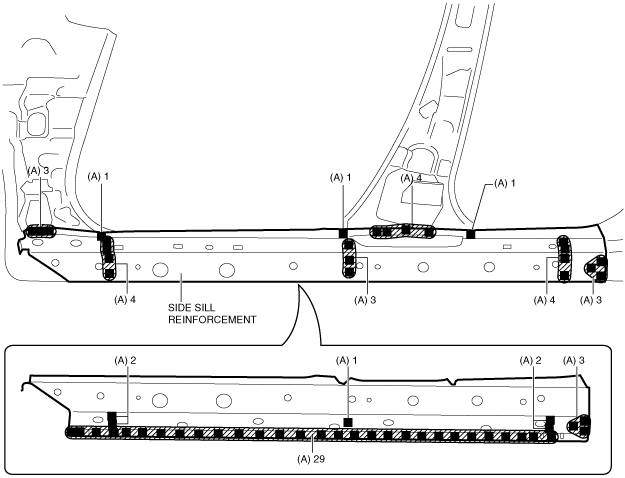

4.  Plug weld the 61 locations indicated by (A) shown in the figure.

am6zzb00000249

5.  Install the side sill reinforcement.

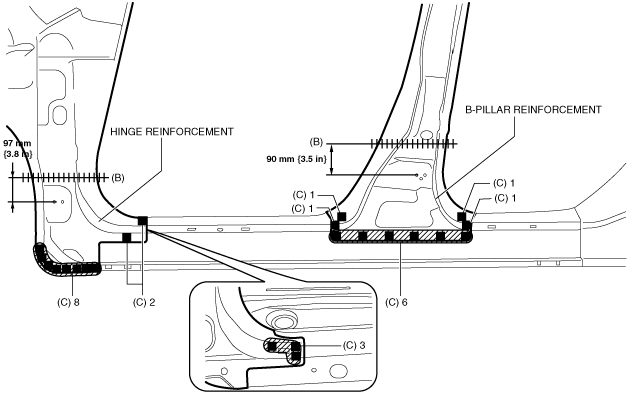

6.  Cut-and-join area locations indicated by (B) then plug weld the 23 locations indicated by (C) shown in the figure.

am6zzb00000250

7.  Install the hinge reinforcement and B-pillar reinforcement.

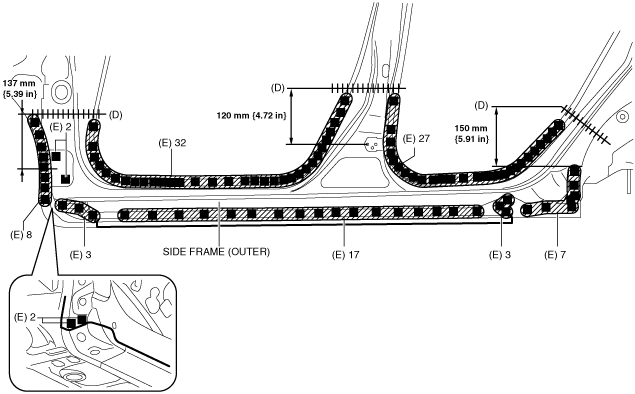

8.  Cut-and-join area locations indicated by (D) then plug weld the 101 locations indicated by (E) shown in the figure.

am6zzb00000251
