ROOF PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744400

Symbol Mark

am6zzb00000119

Installation Procedure

4SD

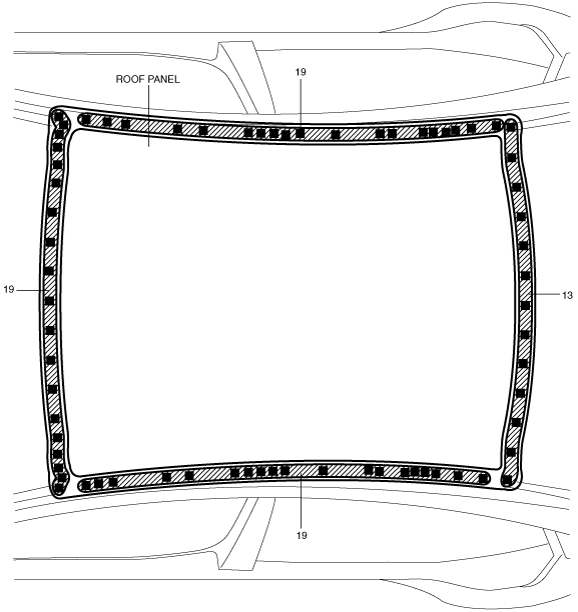

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 70 locations indicated shown in the figure.

am6zzb00000260

5HB

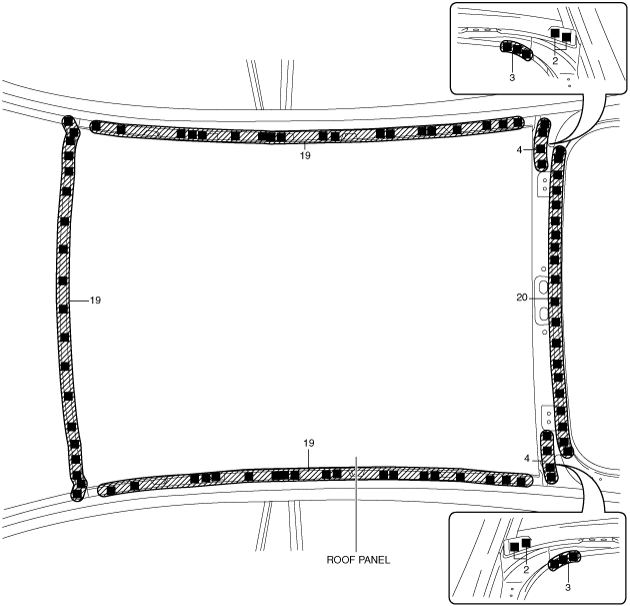

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 95 locations indicated shown in the figure.

am6zzb00000301

Wagon

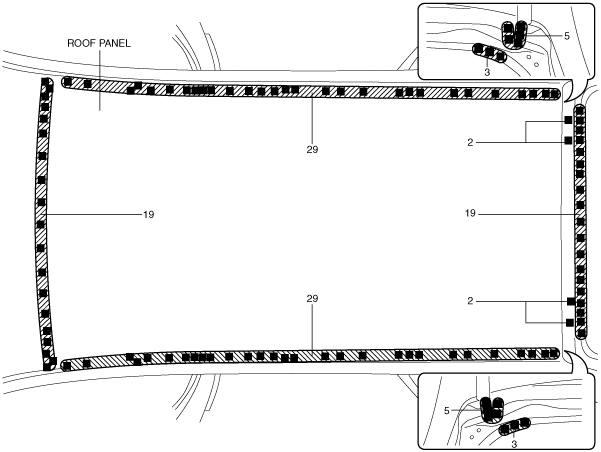

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 116 locations indicated shown in the figure.

am6zzb00000302
