FRONT PILLAR REMOVAL [PANEL REPLACEMENT]

id098008744700

Symbol Mark

am2zzb00000084

Removal Procedure

Caution

•  Remove the curtain air bag module to prevent damage before servicing.

Front-side

am6zzb00000142

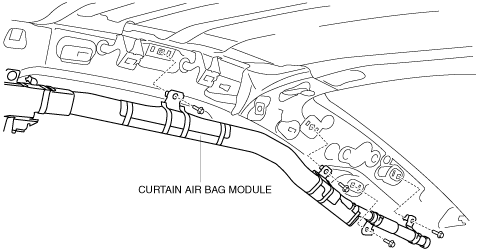

Rear-side

am6zzb00000143

1.  Rough cut area (A), drill the 75 locations indicated by (B) shown in the figure.

am6zzb00000073

am6zzb00000074

Caution

•  During rough cutting, be careful not to damage the side sill reinforcement.

2.  Remove the front pillar (outer).

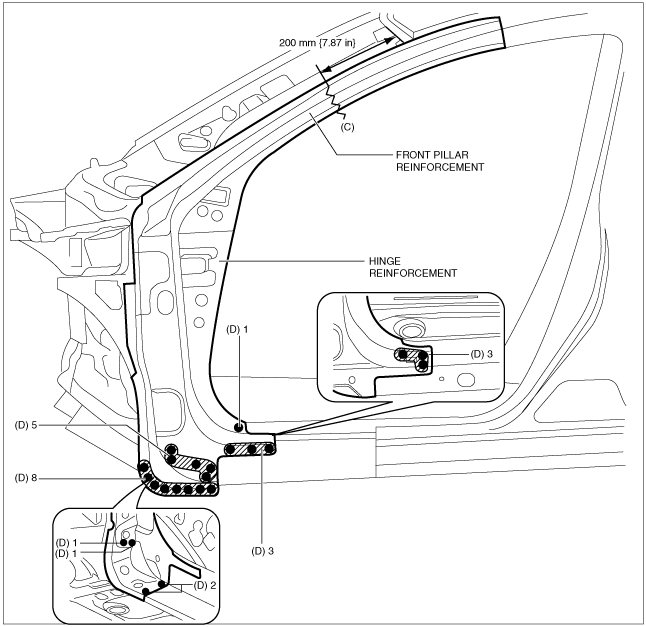

3.  Rough cut area (C), drill the 24 locations indicated by (D) shown in the figure.

am6zzb00000075

4.  Remove the front pillar reinforcement and hinge reinforcement.

5.  Rough cut area (F), drill the 8 locations indicated by (G) shown in the figure.

am6zzb00000076

6.  Remove the front pillar (inner).

7.  Remove the spot weld sealer using a disc grinder.
