WHEEL APRON COMPONENT INSTALLATION [PANEL REPLACEMENT]

id098008746100

Symbol Mark

am6zzb00000062

Installation Procedure

Left-side

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 34 locations indicated by (A), drill the 8 locations indicated by (B) shown in the figure.

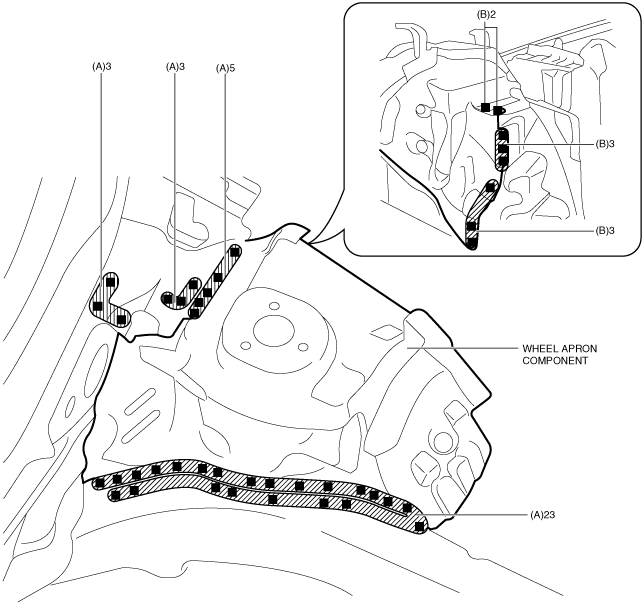

am6zzb00000159

Note

•  Plug weld the 8 locations indicated by (B) from the front wheel housing.

Right-side

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 33 locations indicated by (A), drill the 8 locations indicated by (B) shown in the figure.

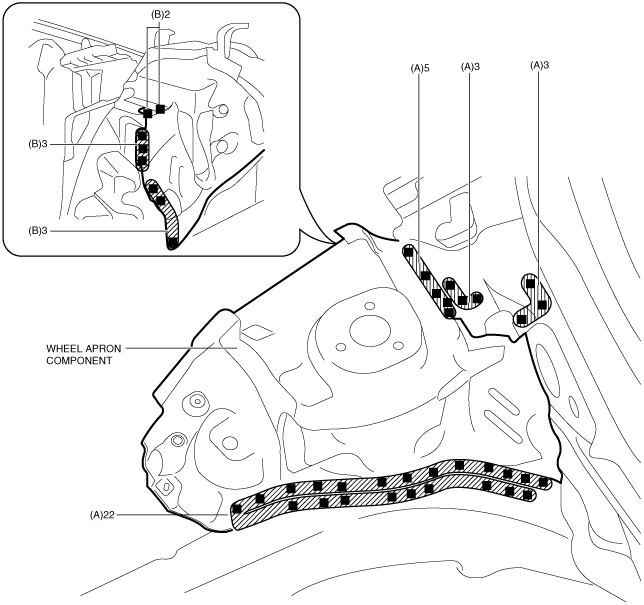

am6zzb00000160

Note

•  Plug weld the 8 locations indicated by (B) from the front wheel housing.
