APRON REINFORCEMENT (UPPER) REMOVAL [PANEL REPLACEMENT]

id098008800000

Symbol Mark

am6zzb00000050

Removal Procedure

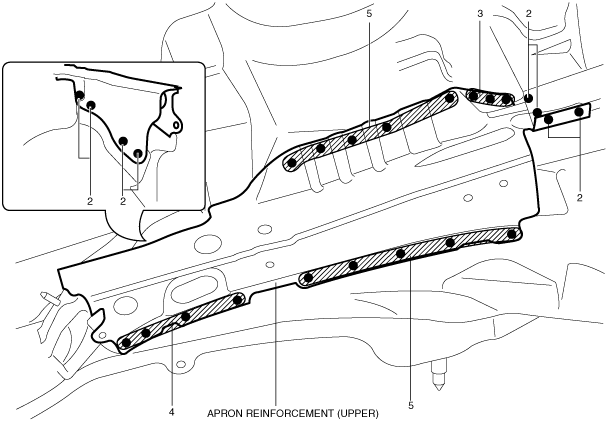

1.  Drill the 25 locations indicated shown in the figure.

am6zzb00000051

2.  Remove the apron reinforcement (upper).
