REAR BUMPER BRACKET REMOVAL [PANEL REPLACEMENT]

id098008921900

Symbol Mark

am6zzb00000285

Removal Procedure

1.  Drill the 2 weld locations indicated by (A) together with the rear floor pan and floor side panel.

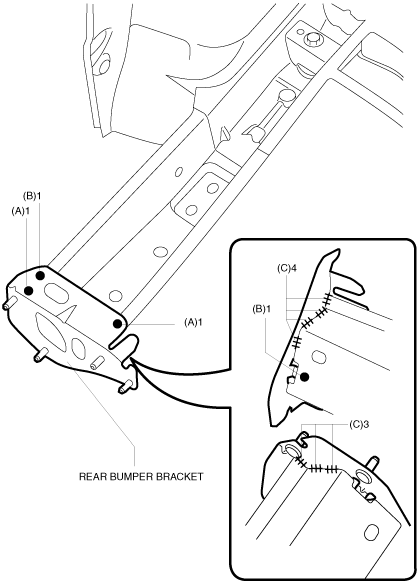

am6zzb00000286

2.  Drill the 2 weld locations indicated by (B) shown in the figure.

3.  Grind the 7 continuous co² arc welding locations indicated by (C) shown in the figure.

4.  Remove the rear bumper reinforcement.
